Description
General part information

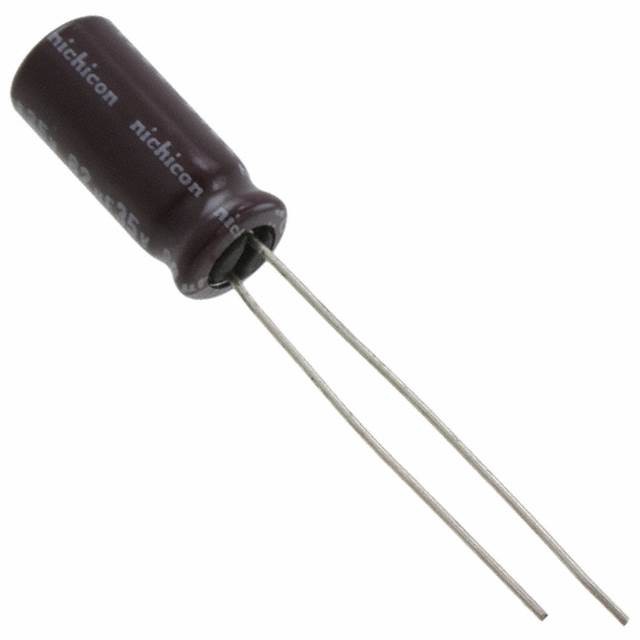

UPJ1J330MED1TD
33 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPJ1J330MED1TD |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 µF |
| Height - Seated (Max) | 0.63 in |
| Impedance | 520 mOhms |
| Lead Spacing | 0.098 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 170 mA, 305 mA |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
