1217072-1
ActiveTE Connectivity AMP Connectors

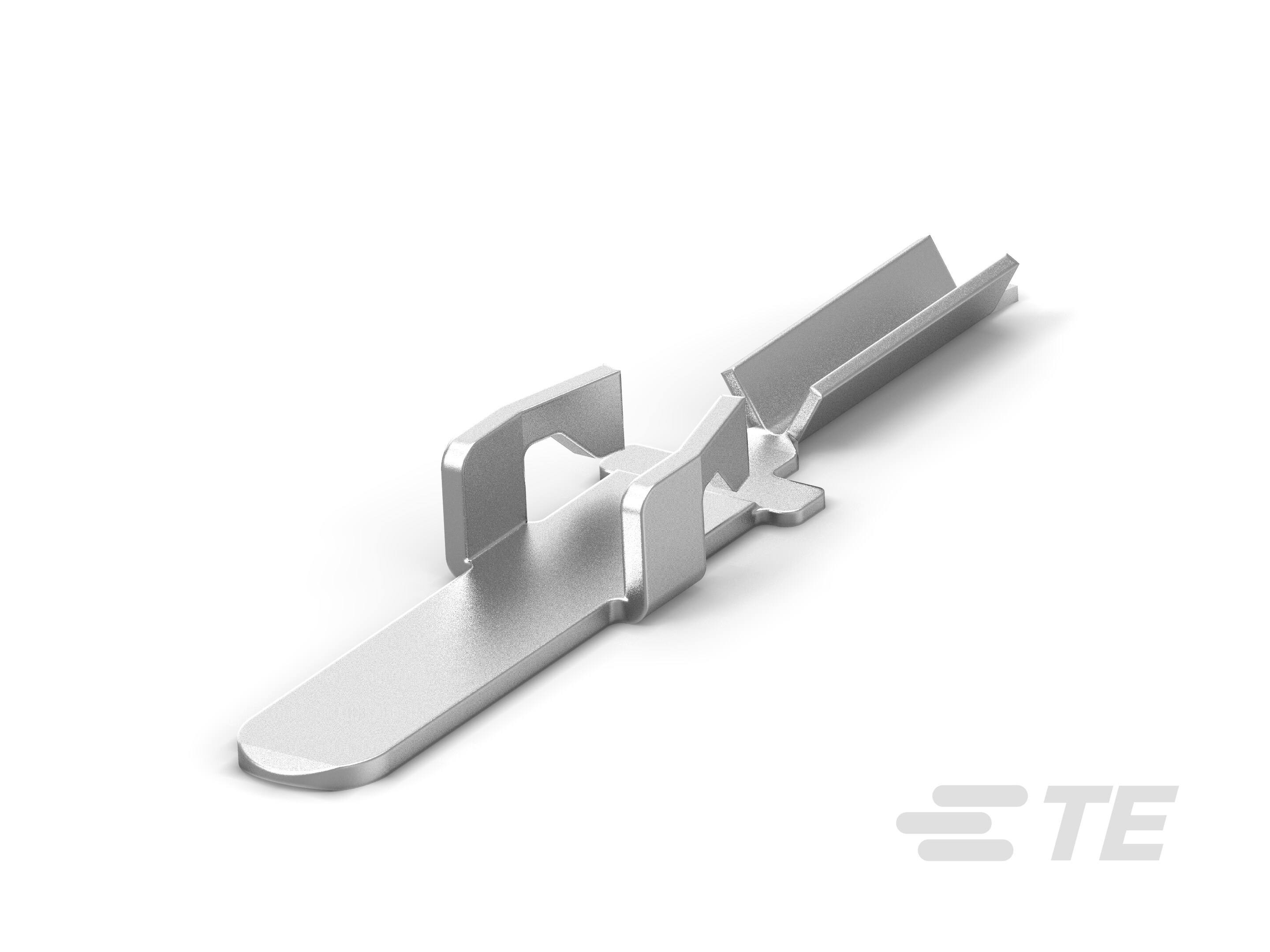

CONT AMVAR 125 BLADE 020 TPBR ROHS COMPLIANT: YES
1217072-1
ActiveTE Connectivity AMP Connectors
CONT AMVAR 125 BLADE 020 TPBR ROHS COMPLIANT: YES
Description
General part information
1217072-1
Quick Disconnect Tab, 27 – 20.5 AWG, .1 – .41 mm² Wire, 200 – 850 CMA, 3.18 mm [.125 in] Tab Width, Straight, Brass, Tin Plating, Reel, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217072-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall | 1.1 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.37 in |
| Tab Thickness | 0.02 in |
| Tab Width | 0.125 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (CMA) (Max) | 850 CMA |
| Wire Gauge (CMA) (Min) | 200 CMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
