AIUR-12-222K
ObsoleteAbracon LLC
FIXED IND 2.2MH 110MA 11 OHM TH
AIUR-12-222K
ObsoleteAbracon LLC
FIXED IND 2.2MH 110MA 11 OHM TH
Description
General part information
AIUR-12-222K

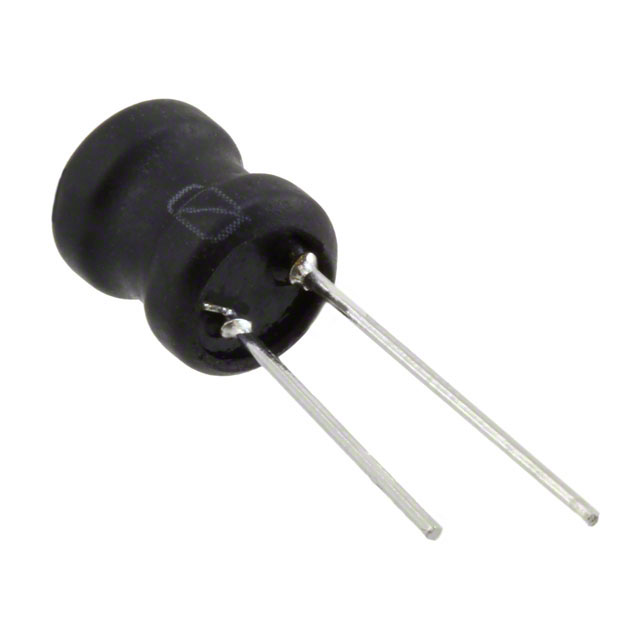

2.2 mH Unshielded Drum Core, Wirewound Inductor 110 mA 11Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | AIUR-12-222K |
|---|---|
| Current Rating | 110 mA |
| DC Resistance (DCR) (Max) | 11 Ohm |
| Frequency - Self Resonant | 1 MHz |
| Height - Seated (Max) | 0.413 in |
| Inductance | 2.2 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 30 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.283 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
