Description
General part information
SA2E-DN3MC

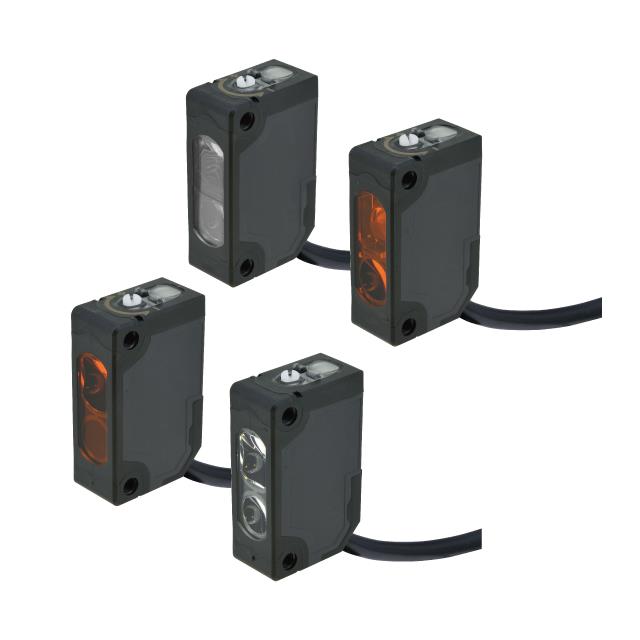

SA2E-DN3MC is a SA2E series miniature high-performance photoelectric sensor with built-in amplifier. Features operating temperature range of -30 to +55°C. Ideal for installation on equipment used in cold storage warehouses. Small objects moving at high speed were detected at intervals, but with SA2E, the response time is 0.5ms, allowing continuous detection of small objects at high speed. In addition to reverse-polarity protection for the power voltage, an output reverse-polarity protection circuit is also built-in, to protect the sensor from damage in the event of incorrect wiring.
Technical Specifications
Parameters and characteristics for this part
| Specification | SA2E-DN3MC |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | Light-ON, NPN - Dark-ON |
| Response Time | 500 µs |
| Sensing Distance | 19.685 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
