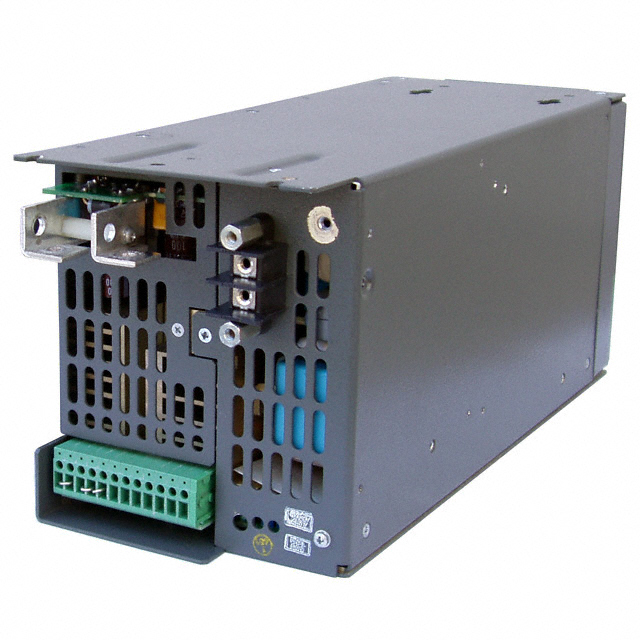

JFS0750-24
ObsoleteTDK Corporation
AC/DC CONVERTER 24V 750W
JFS0750-24
ObsoleteTDK Corporation
AC/DC CONVERTER 24V 750W
Description
General part information
JFS0750-24
Enclosed AC DC Converters 1 Output 24V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | JFS0750-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 31.2 A |
| Efficiency | 75 % |
| Features | Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 750 W |
| Size / Dimension Height | 2 in |
| Size / Dimension Length | 11.06 in |
| Size / Dimension Width | 4.87 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
