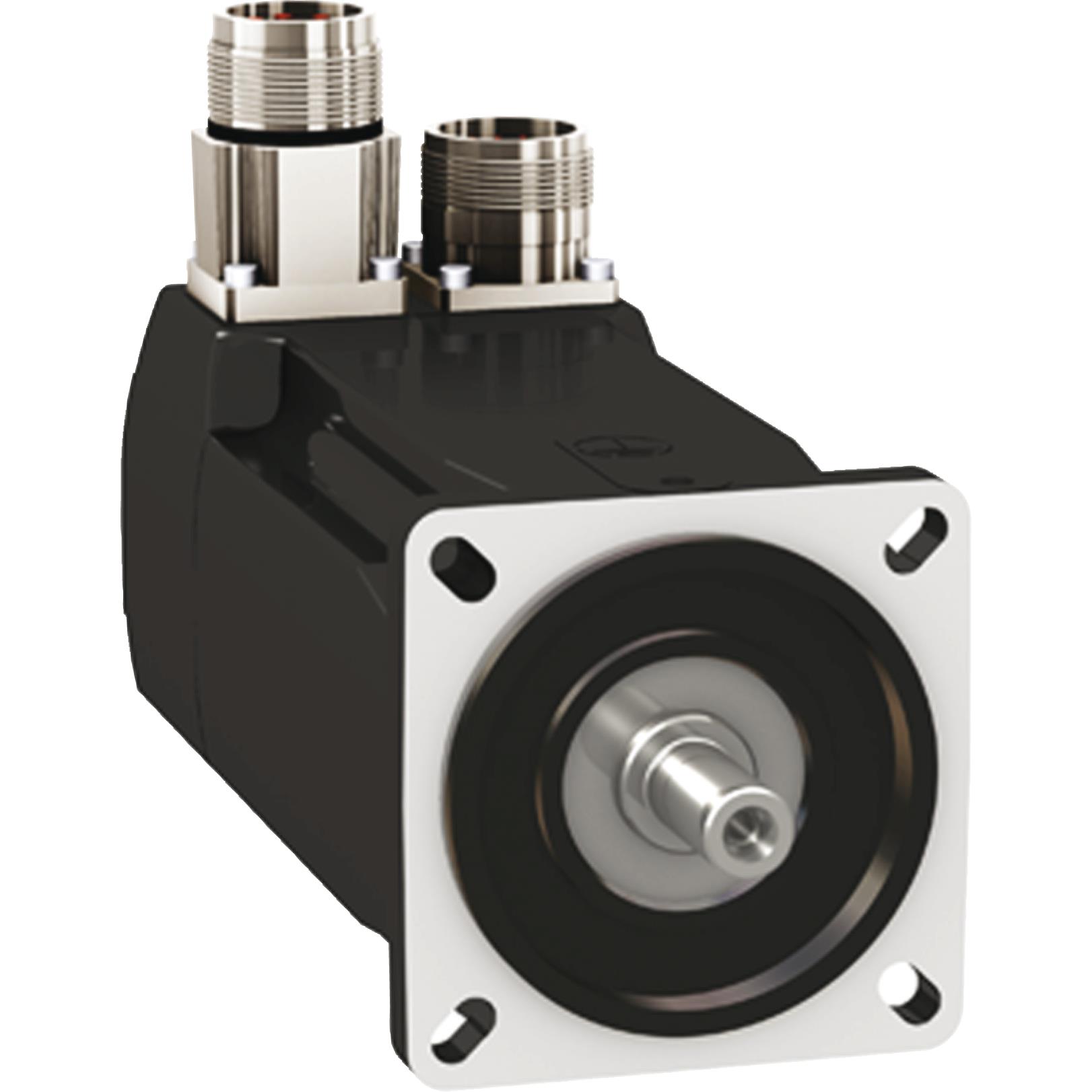

BMH0703P32A1A

BMH0703P32A1A

Active
SCHNEIDER ELECTRIC

AC, DC & SERVO MOTORS MOTOR 70MM IP65 KEY ENC MULTI128 STR

Find alt
BMH0703P32A1A

BMH0703P32A1A

Active
SCHNEIDER ELECTRIC

AC, DC & SERVO MOTORS MOTOR 70MM IP65 KEY ENC MULTI128 STR

Find alt

Description

General part information

Lexium 32 Series

AC Motor Servomotor 8000 RPM 1.3kW 480VAC

Technical Specifications

Parameters and characteristics for this part

SpecificationBMH0703P32A1A
Diameter - Shaft0.55 in
FeaturesKey
FunctionServomotor
Length - Shaft and Bearing1.18 in
Mounting Hole Spacing2.36 in
Power - Rated1300 W
RPM8000 RPM
Size / Dimension Length2.76 in
Size / Dimension ShapeSquare
Size / Dimension Width2.76 in
Termination StyleConnector
Torque - Rated (mNm)2400 mNm
Torque - Rated (oz-in)339.8 oz-in
TypeAC Motor
Voltage - Rated480 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
BMH0703P32A1A | Datasheet
