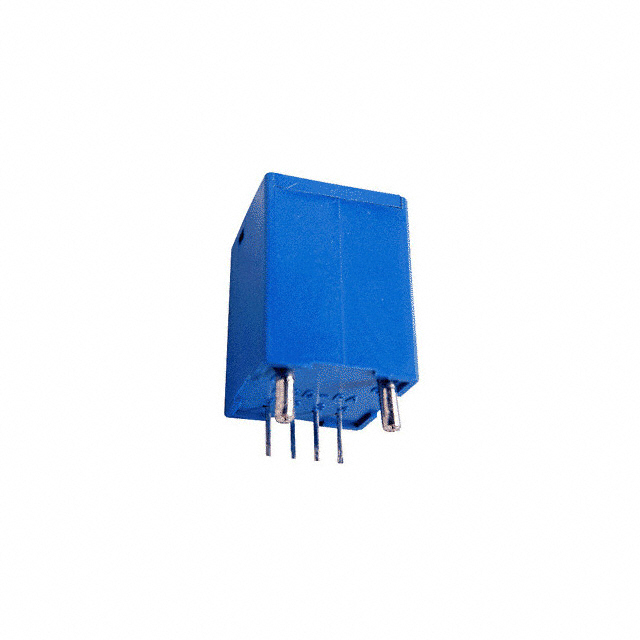

SCD05PUN
ObsoleteSame Sky (Formerly CUI Devices)
SENSOR CURRENT HALL 5A DC
SCD05PUN
ObsoleteSame Sky (Formerly CUI Devices)
SENSOR CURRENT HALL 5A DC
Description
General part information
SCD05PUN
Current Sensor 5A 1 Channel Hall Effect, Open Loop Unidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SCD05PUN |
|---|---|
| Current - Sensing | 5 A |
| Current - Supply (Max) | 10 mA |
| For Measuring | DC |
| Frequency | 50Hz, 60Hz |
| Linearity Tolerance | 0.5 % |
| Number of Channels | 1 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -10 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Unidirectional |
| Response Time | 7 µs |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply | 5 VDC |
