326745
ActiveTE Connectivity AMP Connectors

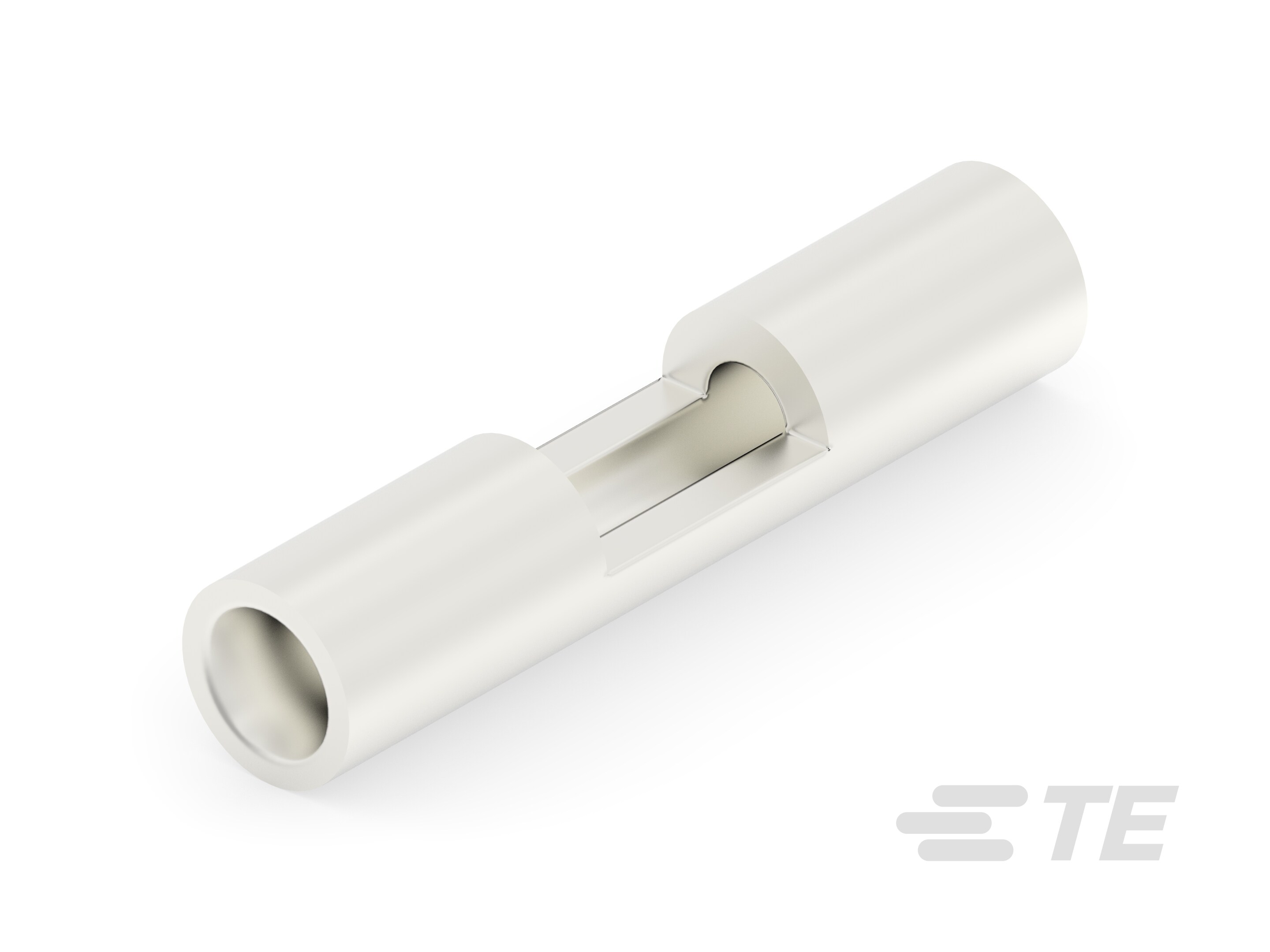

SPLICE,SOLIS BUTT STRAP 22-20
326745
ActiveTE Connectivity AMP Connectors
SPLICE,SOLIS BUTT STRAP 22-20
Description
General part information
326745
Butt Splice, 22 – 20 AWG, .3 – .6 mm² Wire, Serrated, 509 – 1900 CMA, Copper, 8 Serration, 12.45 mm [.49 in] Length, Carton, Closed Barrel
Technical Specifications
Parameters and characteristics for this part
| Specification | 326745 |
|---|---|
| Features | Serrated Mating Area |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings, Butt Splice |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
