5767044-1
ActiveTE Connectivity AMP Connectors

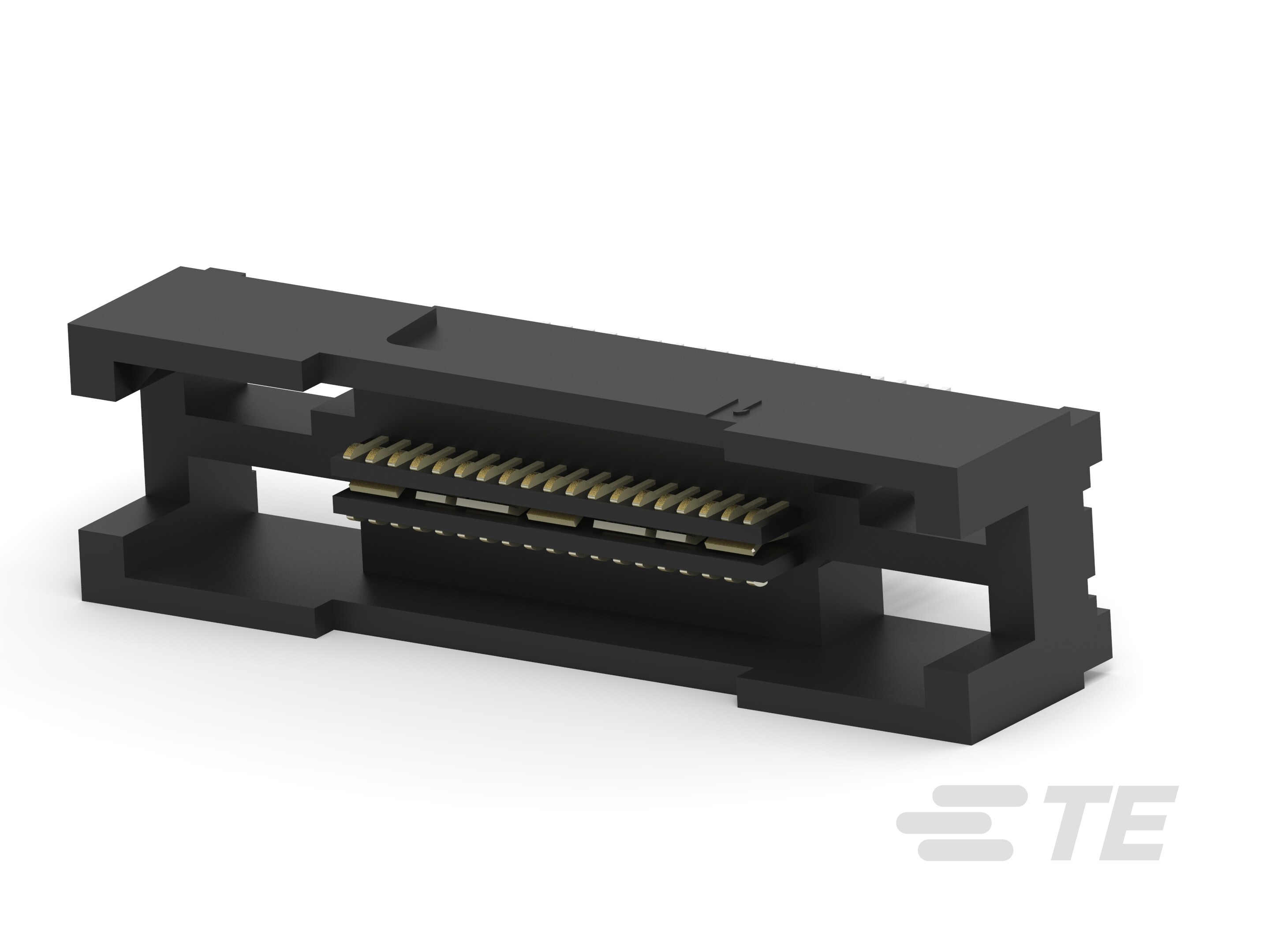

MICTOR,R/A,RECPT,.062,038,ASY
5767044-1
ActiveTE Connectivity AMP Connectors
MICTOR,R/A,RECPT,.062,038,ASY
Description
General part information
5767044-1
PCB Mount Receptacle, Straddle Mount, Board-to-Board, 38 Position, .64 mm [.025 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 5767044-1 |
|---|---|
| Connector Type | Center Strip Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Ground Bus (Plane), Board Guide |
| Height Above Board | 0.236 in |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Positions | 38 |
| Number of Rows | 2 |
| Pitch | 0.025 in |
