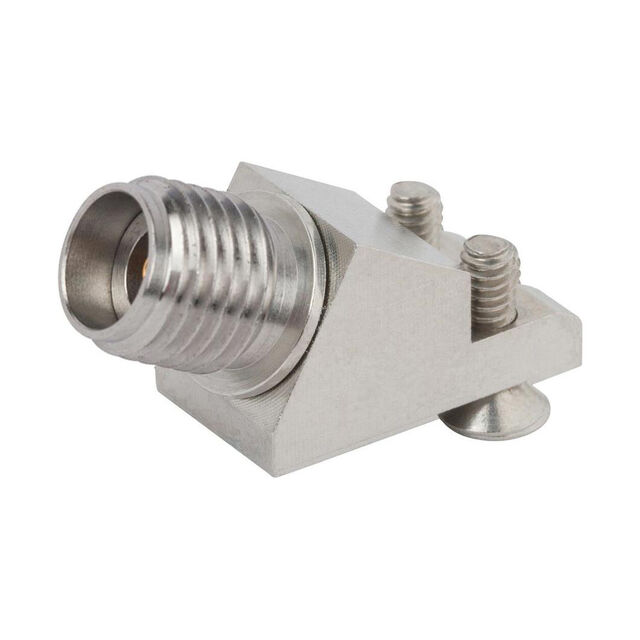

1522-60008
ActiveMcGill Microwave Systems
2.92MM FEMALE SOLDERLESS PCB COM
1522-60008
ActiveMcGill Microwave Systems
2.92MM FEMALE SOLDERLESS PCB COM
Description
General part information
1522-60008
2.92mm Connector Receptacle, Female Socket 50 Ohms Panel Mount; Surface Mount Compression
Technical Specifications
Parameters and characteristics for this part
| Specification | 1522-60008 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.92 mm |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Features | Mounting Hardware |
| Frequency - Max | 40 Gbps |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Surface Mount |
| Number of Ports | 1 |
| Shield Termination | Screw |
