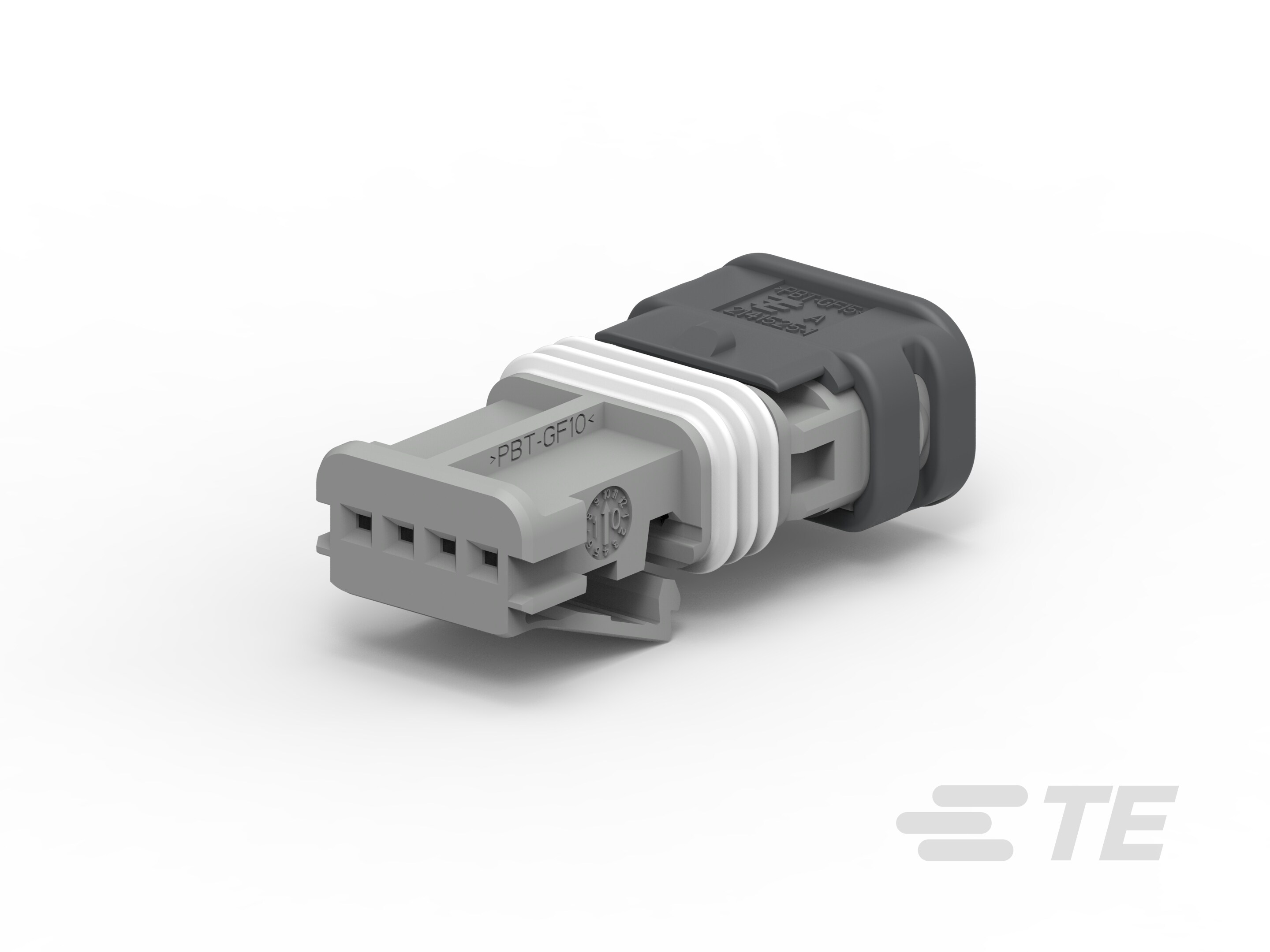

Specification	2141466-2

Color	Gray
Connector Type	Housing for Female Insert
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-40 °C
Pitch	0.071 in

Nano MQS Series

...

Part	Fastening Type	Number of Positions	Contact Type	Number of Rows	Color	Mounting Type	Contact Termination	Insulation Material	Connector Type	Pitch	Features	Operating Temperature (Max)	Operating Temperature (Min)	Row Spacing

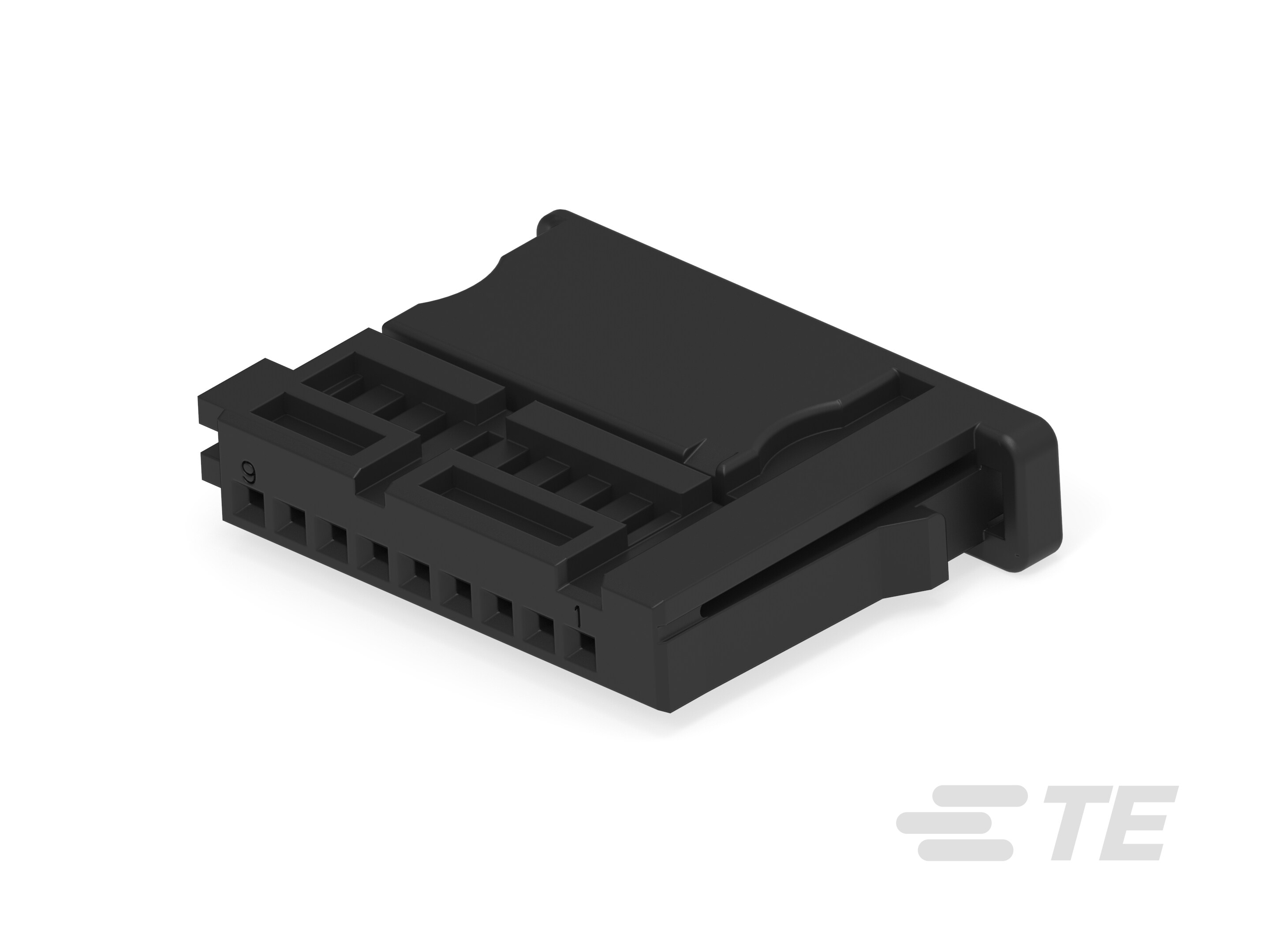

TE Connectivity AMP Connectors 2282156-1	Latch Holder	9	Female Socket	1	Black	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Receptacle	0.071 in
TE Connectivity AMP Connectors 2112593-1	Push-Pull	6	Female Socket	2	Black	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Housing for Female Insert	0.071 in	Terminal Position Lock (TPA)	130 °C	-40 °C	0.236 in

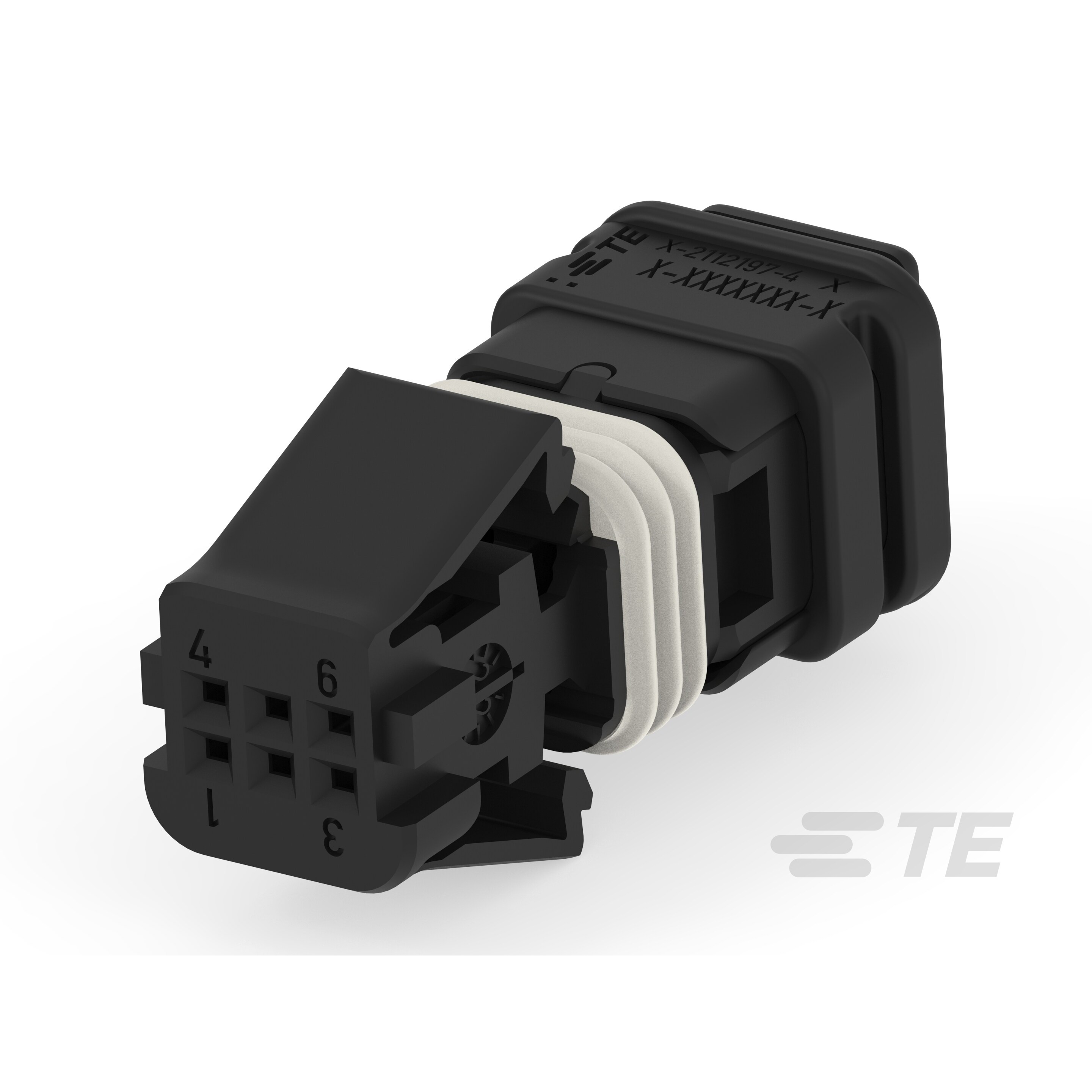

TE Connectivity AMP Connectors 2-2112594-1	Push-Pull	2	Female Socket	2	Black	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Receptacle	0.071 in	Terminal Position Lock (TPA)	130 °C	-40 °C	0.1 in
TE Connectivity AMP Connectors 2303089-1	Latch Holder	8	Female Socket	2	Blue	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Receptacle	0.071 in	Terminal Position Lock (TPA)	105 °C	-40 °C	0.059 in

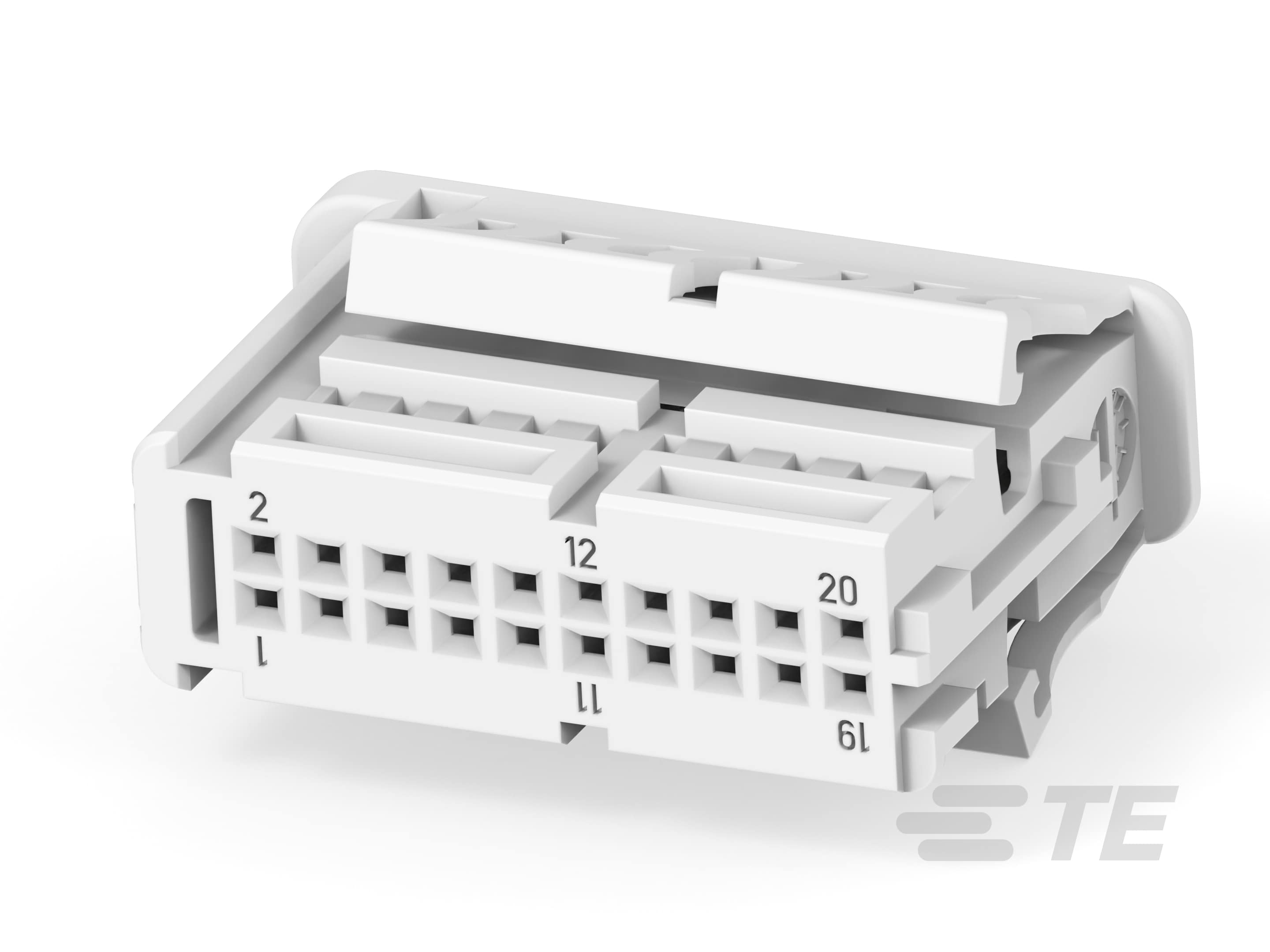

TE Connectivity AMP Connectors 2141404-2	Latch Holder	20	Female Socket	2	Natural	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Receptacle	0.071 in	Retainer	120 °C	-40 °C	0.059 in
TE Connectivity AMP Connectors 2177588-4

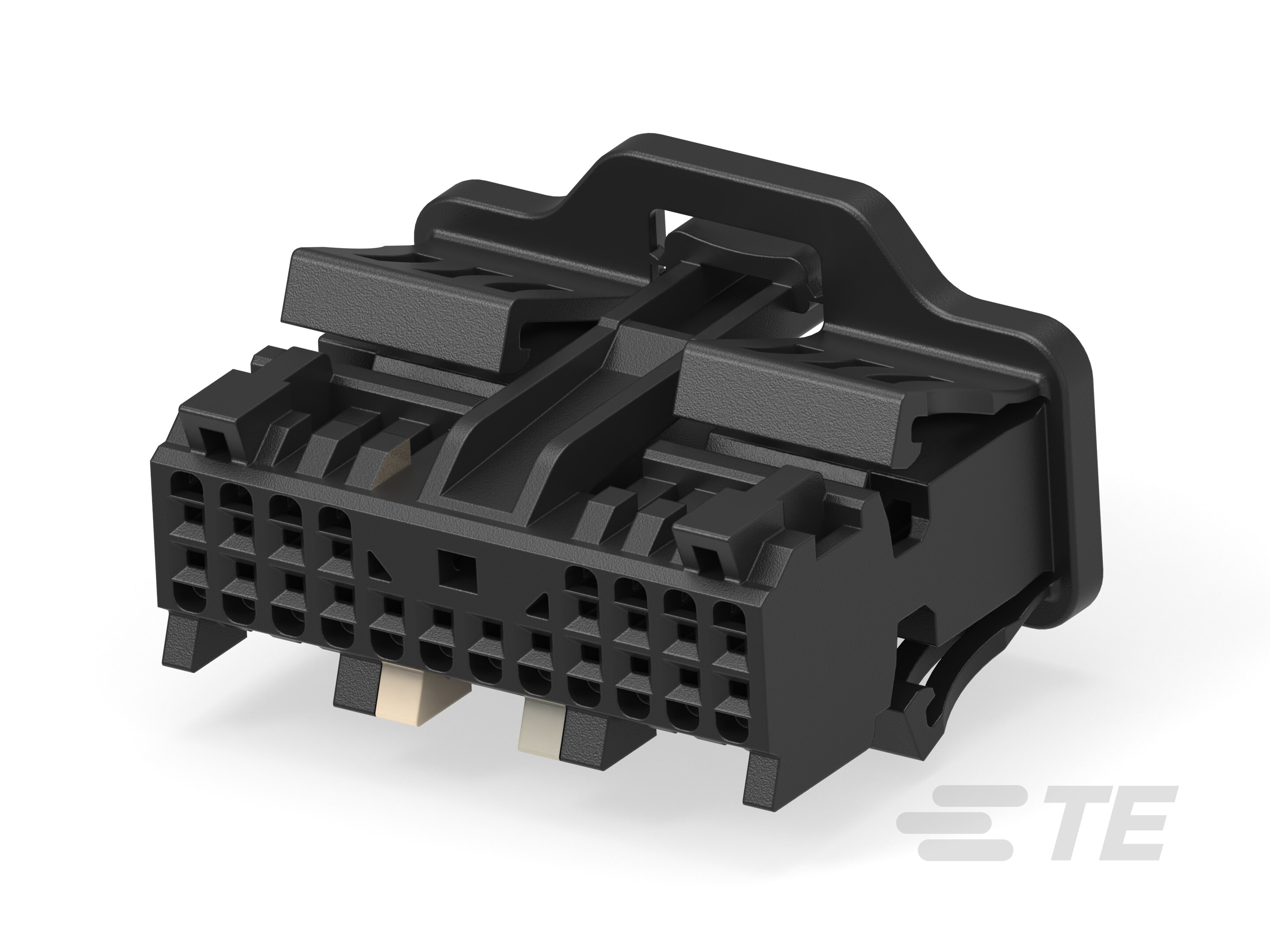

TE Connectivity AMP Connectors 2177588-1
TE Connectivity AMP Connectors 2282157-1	Locking Ramp	11	Female Socket	1	Black	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Housing for Female Insert	0.071 in		105 °C	-40 °C
TE Connectivity AMP Connectors 2177588-2
TE Connectivity AMP Connectors 2177587-1	Latch Holder	12	Female Socket	2	Black	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Receptacle	0.071 in	Terminal Position Lock (TPA)	105 °C	-40 °C	0.232 in
