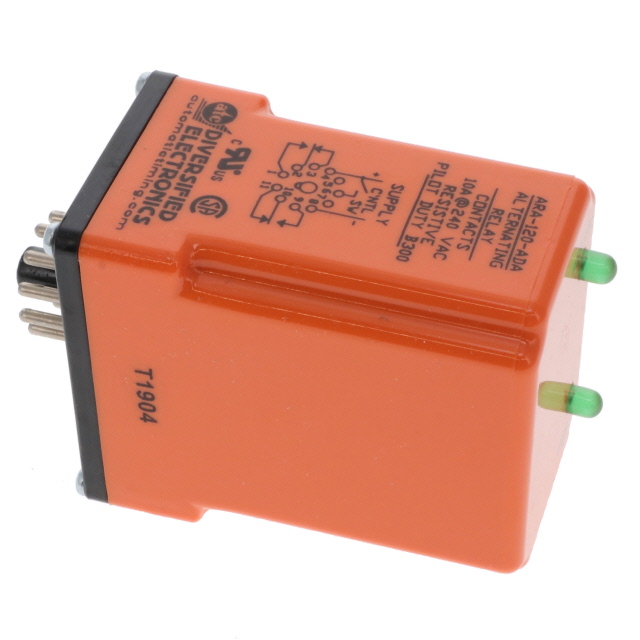

ARA-120-ADA

Unknown

MUELLER ELECTRIC

DUPLEXOR

Search across all available documentation for this part.

Unknown

MUELLER ELECTRIC

DUPLEXOR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ARA-120-ADA	ARA-120 Series

Approval Agency	CSA, cURus	CSA, cURus
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC, 120 VDC	120 VAC
Contact Form	DPDT (2 Form C)	SPDT (1 Form C), DPDT (2 Form C)
Contact Rating (Current)	10 A	10 A
Load - Max Switching [Max]	2400 VA	2400 VA
Mounting Type	Socketable	Socketable
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Switching Voltage	240 VAC	240 VAC
Termination Style	Plug In, 11 Pin (Octal)	Plug In, 8 Pin (Octal), Plug In, 11 Pin (Octal)

DUPLEXOR

Part	Switching Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Relay Type	Approval Agency	Contact Rating (Current)	Coil Voltage	Load - Max Switching [Max]	Coil Type	Mounting Type
MUELLER ELECTRIC ARA-120-ABA	240 VAC	Plug In, 8 Pin (Octal)	55 °C	-20 C	SPDT (1 Form C)	General Purpose	CSA, cURus	10 A	120 VAC, 120 VDC	2400 VA	Non Latching	Socketable
MUELLER ELECTRIC ARA-120-ADA	240 VAC	Plug In, 11 Pin (Octal)	55 °C	-20 C	DPDT (2 Form C)	General Purpose	CSA, cURus	10 A	120 VAC, 120 VDC	2400 VA	Non Latching	Socketable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.39

General part information

General Purpose Relay DPDT (2 Form C) 120VAC/DC Coil Socketable
