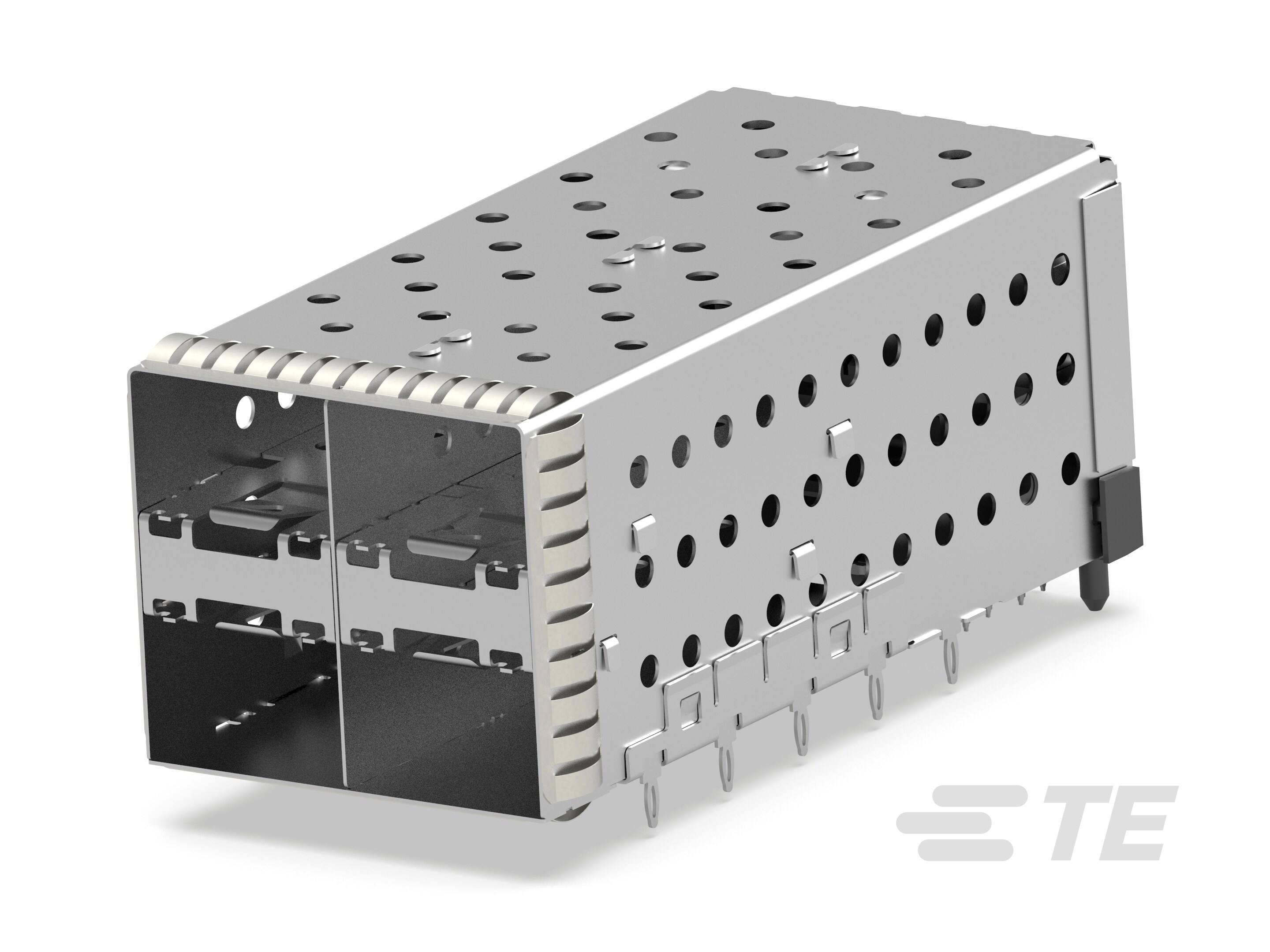

SFP+ assy 2x2 Spring Fingers N-2007637-8

2007637-8

Active
TE Connectivity AMP Connectors

CONN SFP+ RCPT W/CAGE 2X2 80P RA

Find alt
SFP+ assy 2x2 Spring Fingers N-2007637-8

2007637-8

Active
TE Connectivity AMP Connectors

CONN SFP+ RCPT W/CAGE 2X2 80P RA

Find alt

Description

General part information

2007637-8

SFP+, Cage Assembly with Integrated Connector, .8mm [.032in] Centerline, Signal, Operating Temperature Range -55 – 105 °C [-67 – 221 °F]

Technical Specifications

Parameters and characteristics for this part

Specification2007637-8
Connector Pin Configuration (Columns)2 pins
Connector Pin Configuration (Rows)2 pins
Connector StyleReceptacle with Cage, Ganged
Connector TypeSFP+
FeaturesBoard Guide, EMI Shielded
Mounting TypeThrough Hole, Right Angle
Number of Positions (Columns)20
Number of Positions (Rows)4
Number of Positions (Total)80
TerminationPress-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
