Description
General part information

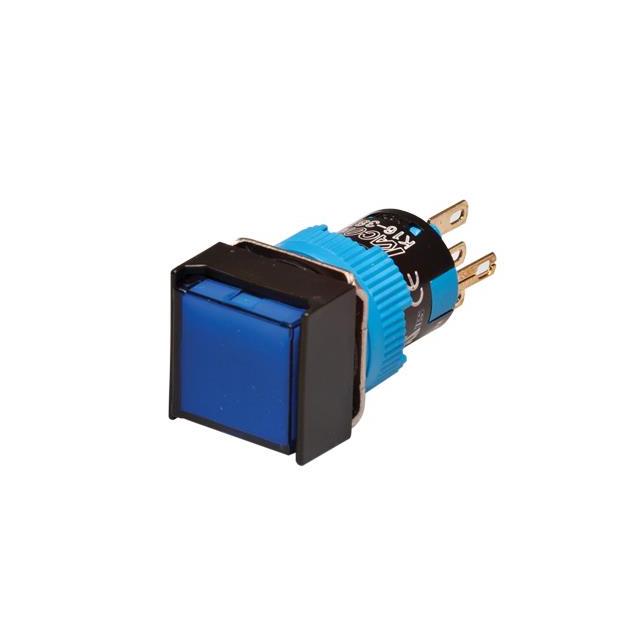

K16-382-B-12VDC
Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | K16-382-B-12VDC |
|---|---|
| Actuator Type | Square, Button |
| Circuit | DPDT |
| Color | Blue |
| Color - Actuator/Cap | Blue |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 50000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 12 V |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-On |
| Termination Style | Quick Connect, Solder |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 110 V |
