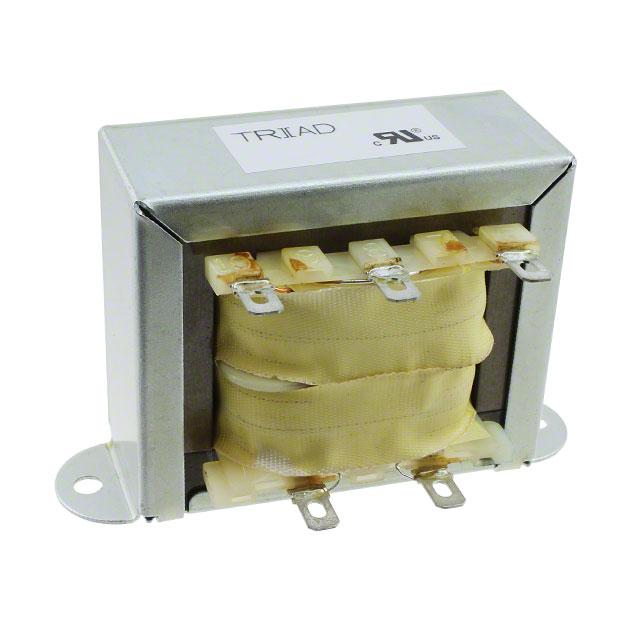

F7-10
ActiveTriad Magnetics
POWER XFMR 10.0VCT@5.0A UL/CUL 115V QUICK PACK W/LUGS/F7-10 ROHS COMPLIANT: NO
F7-10
ActiveTriad Magnetics
POWER XFMR 10.0VCT@5.0A UL/CUL 115V QUICK PACK W/LUGS/F7-10 ROHS COMPLIANT: NO
Description
General part information
F7-10
POWER XFMR 10.0VCT@5.0A UL/CUL 115V QUICK PACK W/LUGS/F7-10 ROHS COMPLIANT: NO
Technical Specifications
Parameters and characteristics for this part
| Specification | F7-10 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 5 A |
| Height - Seated (Max) | 57.15 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 56 VA |
| Primary Winding(s) | Single |
| Quick Connect Size (0.187") | 0.187 in |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 93.65 mm |
| Size / Dimension Width | 46.02 mm |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 10 V |
| Weight | 1.7 lbs |
