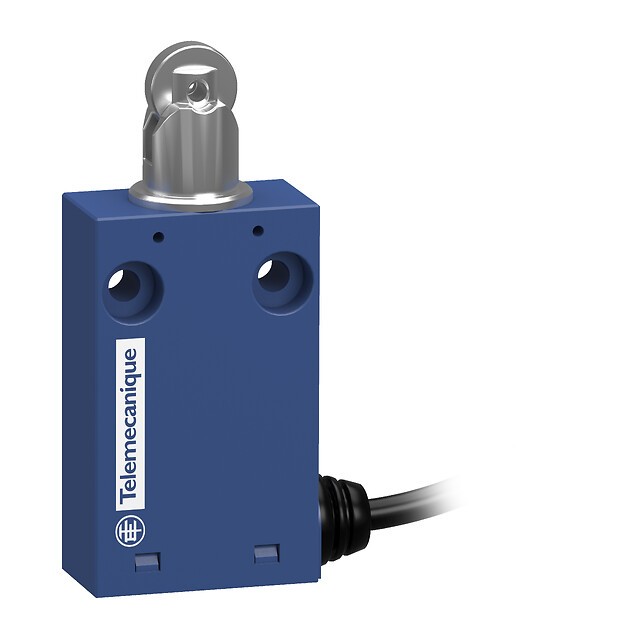

XCMH2102L5
ActiveSCHNEIDER ELECTRIC
LS PL MINI MTL RLLR PLUNGR NCNO
XCMH2102L5
ActiveSCHNEIDER ELECTRIC
LS PL MINI MTL RLLR PLUNGR NCNO
Description
General part information
XCMH2102L5
LS PL MINI MTL RLLR PLUNGR NCNO
Technical Specifications
Parameters and characteristics for this part
| Specification | XCMH2102L5 |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | DPST-NO/NC |
| Current Rating | 750 mA, 100 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
