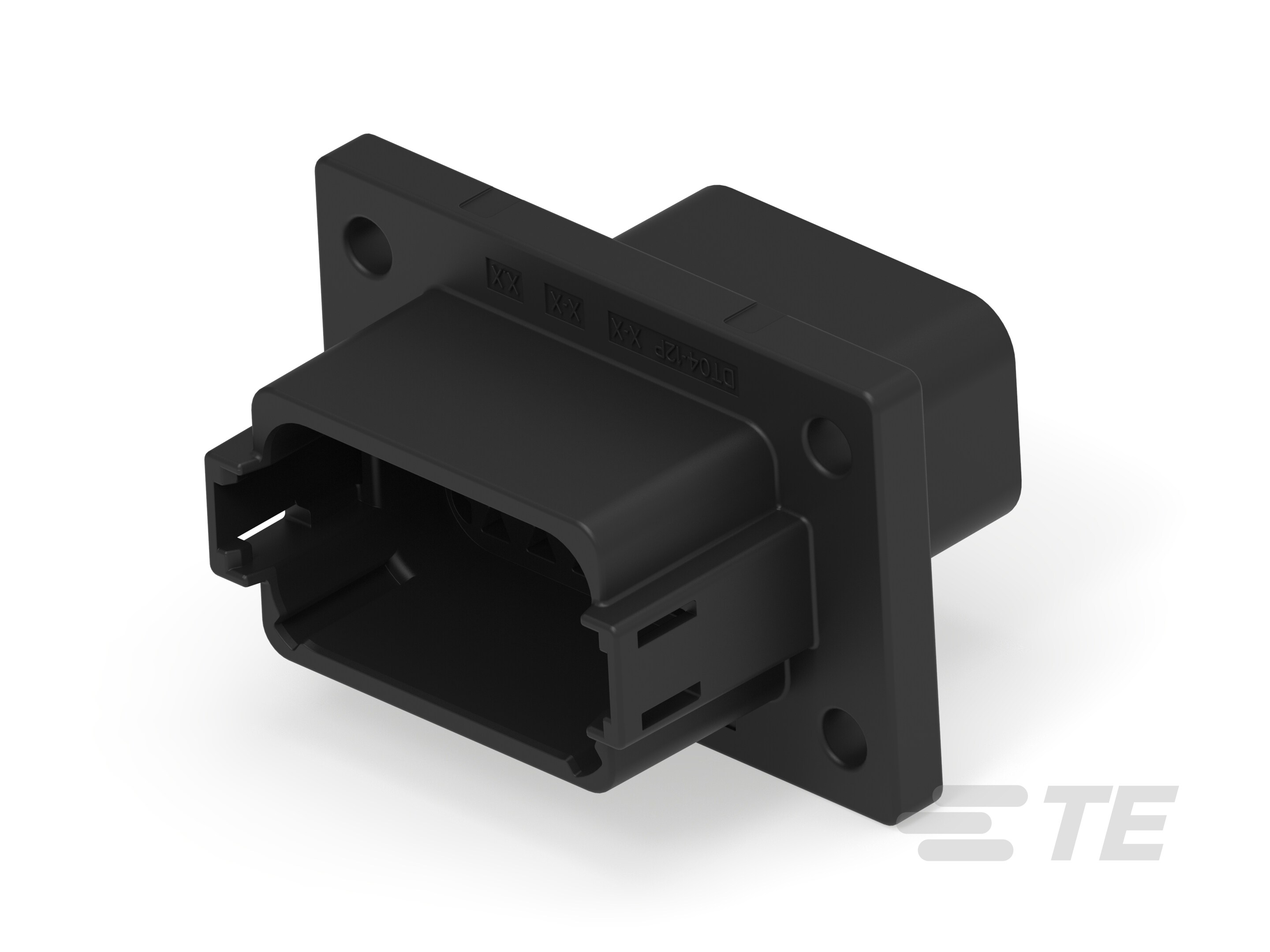

Specification	DT04-12PA-CL06

Color	Black
Connector Type	Housing for Male Insert
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	IP68
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Panel Mount
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.359 in
Row Spacing	0.175 in

DEUTSCH DT Series

...

Part	Row Spacing	Fastening Type	Connector Type	Color	Contact Termination	Insulation Material	Pitch	Contact Type	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Mounting Type	Contact Finish - Mating	Features	Termination	Shrouding	Number of Positions Loaded	Insulation Color	Material Flammability Rating	Voltage Rating	Voltage Rating (Type)	Contact Length - Post	Pitch - Mating	Insulation Height	Current Rating	Contact Shape	Style	Row Spacing - Mating	Contact Finish - Post	Note	For Use With/Related Products	Accessory Type	Contact Material	Ingress Protection	Applications
TE Connectivity AMP Connectors DT04-6P-EP13	0.175 in	Latch Holder	Receptacle	Black	Crimp	Glass Filled Nylon Polyamide (PA)	0.359 in	Male Pin	6	125 °C	-55 °C	3	Free Hanging (In-Line)
TE Connectivity AMP Connectors DTM13-12PA-R005		Latch Holder	Header			Plastic		Male Pin	12	125 °C	-55 °C	2	Panel Mount Right Angle Through Hole	Nickel	Mounting Flange	Solder	Shrouded - 4 Wall	All	Black	UL94 V-0	250 V	DC	0.11 in	0.165 in	1.319 in	7.5 A	Circular	Board Cable/Wire	0.165 in	Tin
TE Connectivity AMP Connectors DT04-3P-LE08		Latch Holder	Receptacle	Gray	Crimp	Plastic		Male Pin	3	125 °C	-55 °C	2	Panel Mount		IP68 IP6K9K																Contacts Not Included
TE Connectivity AMP Connectors 2-2448114-2	0.175 in	Latch Holder	Receptacle	Green	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	0.359 in	Male Pin	6	125 °C	-55 °C	2	Free Hanging (In-Line)		IP68 IP6K9K
TE Connectivity AMP Connectors 1011-262-0305									3																							DT Series	Backshell
TE Connectivity AMP Connectors DT13-4P		Latch Holder	Header			Glass Filled Nylon Polyamide (PA)		Male Pin	4	125 °C	-55 °C	2	Panel Mount Right Angle Through Hole	Nickel	Mounting Flange	Solder	Shrouded - 4 Wall	All	Gray		250 V		0.122 in	0.175 in			Circular	Board Cable/Wire	0.25 in	Tin				Copper Alloy
TE Connectivity AMP Connectors DT04-3P-CE03
TE Connectivity AMP Connectors DT13-12PD		Latch Holder	Header			Glass Filled Nylon 4/6 Polyamide (PA46)		Male Pin	12	125 °C	-55 °C	2	Panel Mount Right Angle Through Hole	Nickel	Mounting Flange	Solder	Shrouded - 4 Wall	All	Brown		250 V		0.122 in	0.175 in	1.388 in		Circular	Board Cable/Wire	0.25 in	Tin				Copper Alloy	IP68 IP6K9K	Automotive
TE Connectivity AMP Connectors DT06-12SA-B016		Latch Lock	Plug	Gray	Crimp	Glass Filled Nylon Polyamide (PA)		Female Socket	12	125 °C	-55 °C	2	Free Hanging (In-Line)		IP68 IP6K9K
TE Connectivity AMP Connectors DTF15-12PB-G003		Latch Holder	Header			Glass Filled Nylon 4/6 Polyamide (PA46)		Male Pin	12			2	Through Hole	Gold	Board Guide	Solder	Shrouded - 4 Wall	All	Black				0.125 in	0.175 in	1.377 in		Circular	Board Cable/Wire	0.359 in	Tin				Copper Alloy		Automotive
