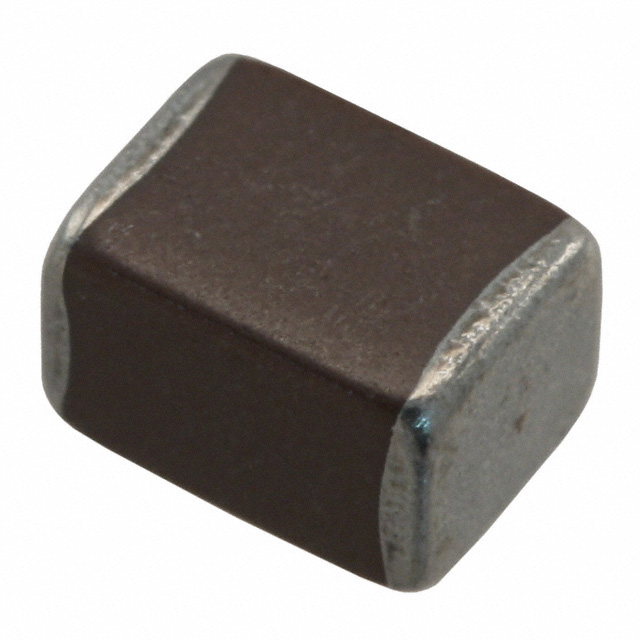

TCDR160X226M1GV001E
ObsoleteJohanson Technology Inc.
CAP CER 22UF 16V X5R 1812
TCDR160X226M1GV001E
ObsoleteJohanson Technology Inc.
CAP CER 22UF 16V X5R 1812
Description
General part information
TCDR160X226M1GV001E
22 µF ±20% 16V Ceramic Capacitor X5R 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TCDR160X226M1GV001E |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 22 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension Length | 0.175 in |
| Size / Dimension Width | 0.125 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.14 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
