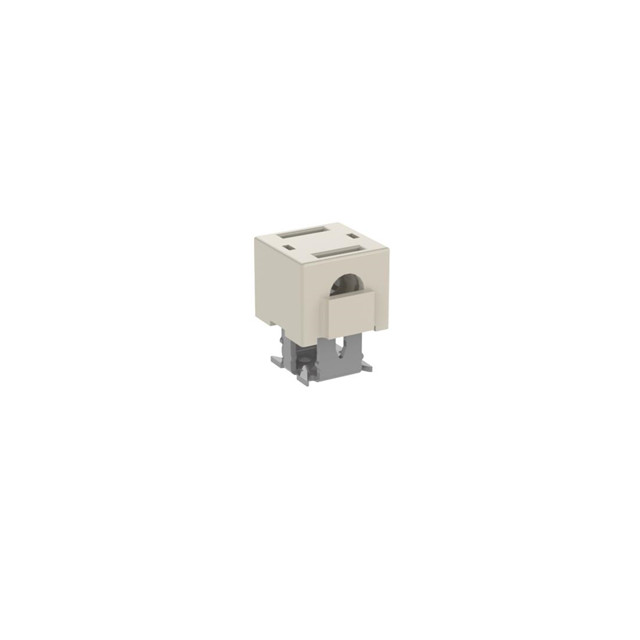

454303-E
ActiveTE Connectivity AMP Connectors
IDCTERM 1 IDC22 1,30 KA 105 707 0007 J
454303-E
ActiveTE Connectivity AMP Connectors
IDCTERM 1 IDC22 1,30 KA 105 707 0007 J
Description
General part information
- Series
Board-In PCB Mount One-Piece IDC Connector, Right Angle, Wire-to-Board, 1 Position, Discrete Wire, Insulation Displacement Connectors Closed End
Technical Specifications
Parameters and characteristics for this part
| Specification | 454303-E |
|---|---|
| Cable Termination | IDC |
| Color | White |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Closed End |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | 22 AWG |
