RR100-KWTR
ObsoleteCOTO TECHNOLOGY
SWITCH REED SPST-NO 1MA
RR100-KWTR
ObsoleteCOTO TECHNOLOGY
SWITCH REED SPST-NO 1MA
Description
General part information
RR100-KWTR

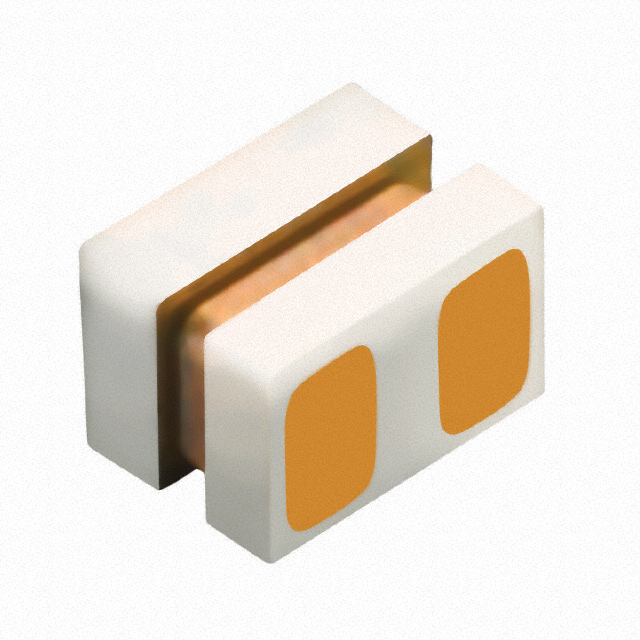

Molded Body Reed Switch SPST-NO 12mT Operate Range 1mA (DC) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RR100-KWTR |
|---|---|
| Capacitance | 0.2 pF |
| Circuit | SPST-NO |
| Current - Switching (DC) | 0.001 A |
| Height Above Board | 0.041 in |
| Length - Overall | 0.052 in |
| Mounting Type | Surface Mount |
| Operate Range | 12 mT |
| Operate Time | 0.5 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 0.5 ms |
| Size - Body Height | 0.041 in |
| Size - Body Length | 0.052 in |
| Size - Body Width | 0.033 in |
| Termination Style | SMD (SMT) Tab |
| Type | Molded Body Reed |
| Voltage - Switching DC | 6 V |
