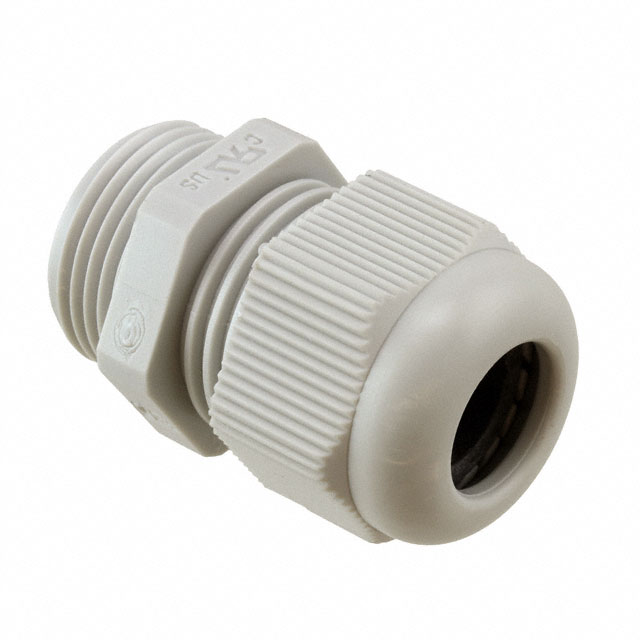

Specification	10000400

Color	Gray
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Nylon, Polyamide (PA)
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.472 in
Outside Cable Diameter (Min)	0.236 in
Thread Length	0.354 in
Thread Size	PG13.5
Type	Cable Gland

10000 Series

Part	Outside Cable Diameter (Max)	Type	Color	Outside Cable Diameter (Min)	Ingress Protection IP Rating	Ingress Protection Description	Material	Operating Temperature (Max)	Operating Temperature (Min)	Thread Length	Thread Size	Features	Accessory Type	For Use With/Related Products
Bopla Enclosures 10000700	0.984 in	Cable Gland	Gray	0.709 in	IP68	Dust Tight Waterproof	Nylon Polyamide (PA)	100 °C	-20 °C	0.433 in	PG29
Bopla Enclosures 10000100	0.256 in	Cable Gland	Gray	0.118 in	IP68	Dust Tight Waterproof	Nylon Polyamide (PA)	100 °C	-20 °C	0.315 in	PG7
Bopla Enclosures 10000310							Polyethylene					IP65	Plug	BF 11 BoplaFlex Gland BoplaFlex Gland; BF 11
Bopla Enclosures 10000200	0.315 in	Cable Gland	Gray	0.157 in	IP68	Dust Tight Waterproof	Nylon Polyamide (PA)	100 °C	-20 °C	0.315 in	PG9
Bopla Enclosures 10000610							Polyethylene					IP65	Plug	BF 21/MBF 25 BoplaFlex Gland BoplaFlex Gland; BF 21/MBF 25
Bopla Enclosures 10000510							Polyethylene					IP65	Plug	BoplaFlex Gland; BF 16
Bopla Enclosures 10000410							Polyethylene					IP65	Plug	BF 13/MBF 20 BoplaFlex Gland BoplaFlex Gland; BF 13/MBF 20
Bopla Enclosures 10000500	0.551 in	Cable Gland	Gray	0.394 in	IP68	Dust Tight Waterproof	Nylon Polyamide (PA)	100 °C	-20 °C	0.394 in	PG16
Bopla Enclosures 10000600	0.709 in	Cable Gland	Gray	0.512 in	IP68	Dust Tight Waterproof	Nylon Polyamide (PA)	100 °C	-20 °C	0.433 in	PG21
Bopla Enclosures 10000110							Polyethylene					IP65	Plug	BoplaFlex Gland; BF 7/MBF 12
