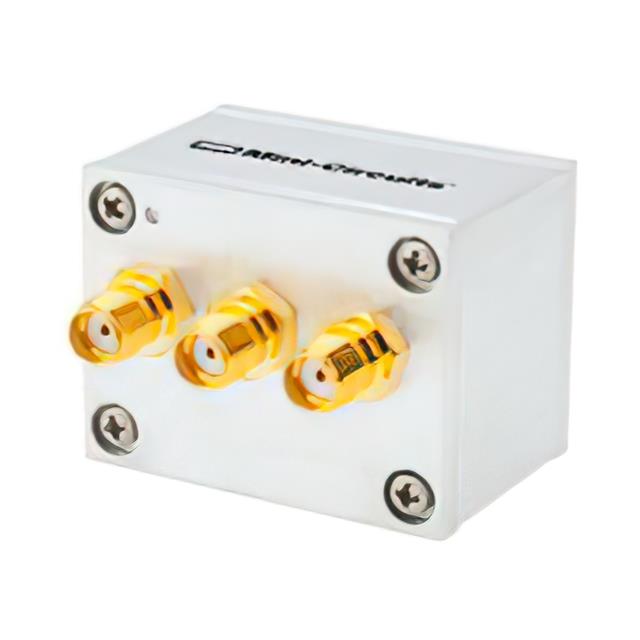

ZMSC-2-1W+
ActiveMini-Circuits
2 WAYS PWRSPLTR, 1-650 MHZ, 50
ZMSC-2-1W+
ActiveMini-Circuits
2 WAYS PWRSPLTR, 1-650 MHZ, 50
Description
General part information
ZMSC-2-1W+
RF Power Divider 1 MHz ~ 650 MHz Isolation (Min) 20dB, 4° Imbalance (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | ZMSC-2-1W+ |
|---|---|
| Frequency (Max) | 650 MHz |
| Frequency (Min) | 1 MHz |
| Imbalance (Max) | 4 ° |
| Insertion Loss | 0.7 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 1.13 in |
