AB3528B-LW100-R
ActivePUI Audio, Inc.
BUZZER ELEMENT FDBK 2.8 KHZ 35MM
AB3528B-LW100-R
ActivePUI Audio, Inc.
BUZZER ELEMENT FDBK 2.8 KHZ 35MM
Description
General part information
AB3528B-LW100-R

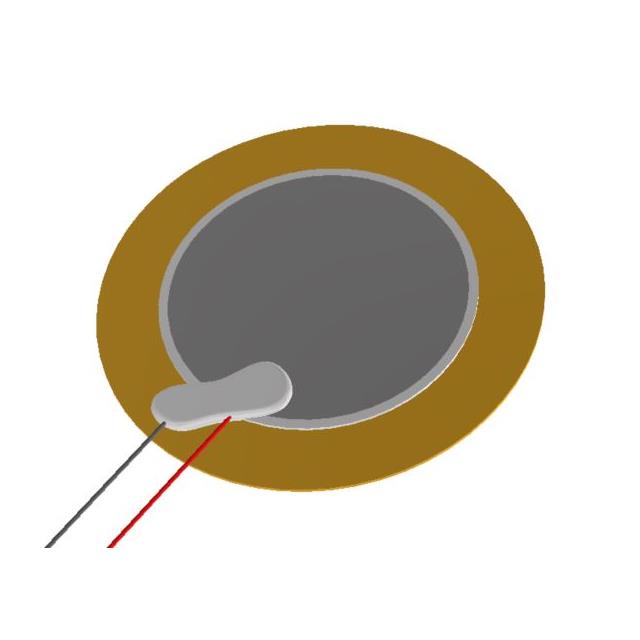

2.8 kHz Feedback Buzzer Element 30V p-p 1.378" Dia (35.00mm) 300 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AB3528B-LW100-R |
|---|---|
| Capacitance | 30000 pF |
| Frequency | 2.8 kHz |
| Impedance | 300 Ohms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 1.378 in |
| Termination | Wire Leads |
| Type | Feedback |
| Voltage - Input (Max) | 30 V p-p |
