RG223-SM-QM(QTY:70m)
ActiveMcGill Microwave Systems

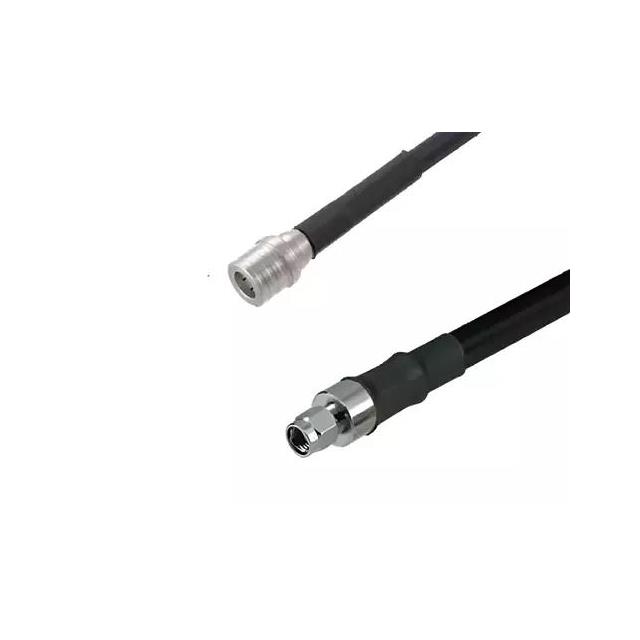

RG223 ASSY SMA MALE-QMA MALE 70M
RG223-SM-QM(QTY:70m)
ActiveMcGill Microwave Systems
RG223 ASSY SMA MALE-QMA MALE 70M
Description
General part information
RG223-SM-QM(QTY:70m)
Cable Assembly Coaxial SMA to QMA RG-223 2755.9" (70.0m) 229.7'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-SM-QM(QTY:70m) |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Length | 2755.9 in |
| Length (ft) | 229.7 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | SMA, QMA |
