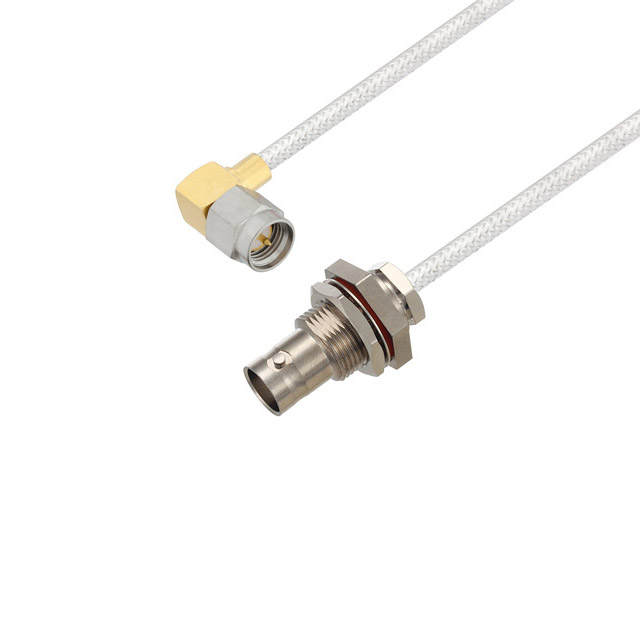

Specification	LCCA30535-FT2

1st Connector	BNC Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Right Angle, SMA Plug
2nd Connector Mounting Type	Right Angle, Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	LC085TB
Connector Impedance	50 Ohms
Frequency - Max	1 GHz
Length	24 in
Overall Impedance	50 Ohms
Style	SMA, BNC
