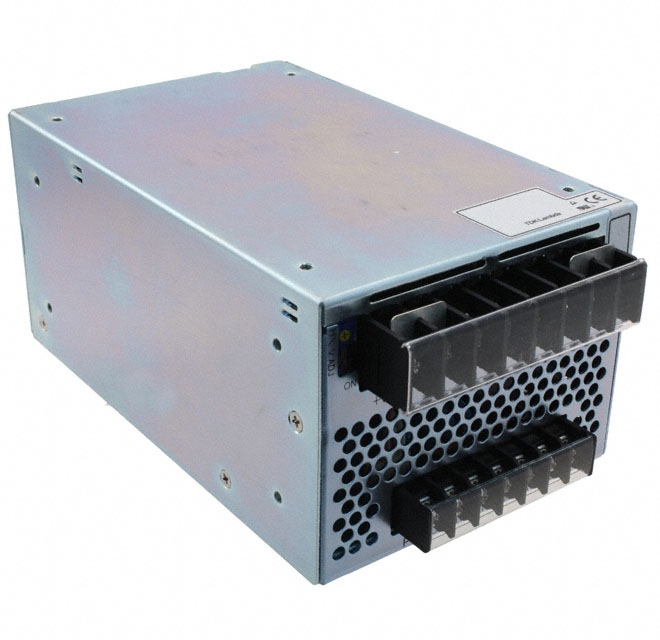

SWS600-48
ObsoleteTDK Corporation
AC/DC CONVERTER 48V 600W
SWS600-48
ObsoleteTDK Corporation
AC/DC CONVERTER 48V 600W
Description
General part information
SWS600-48
Enclosed AC DC Converters 1 Output 48V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SWS600-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 13 A |
| Efficiency | 82 % |
| Features | Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 74 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 600 W |
| Size / Dimension Height | 4.72 in |
| Size / Dimension Length | 7.48 in |
| Size / Dimension Width | 3.62 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
