5802
ActiveKnowles Syfer

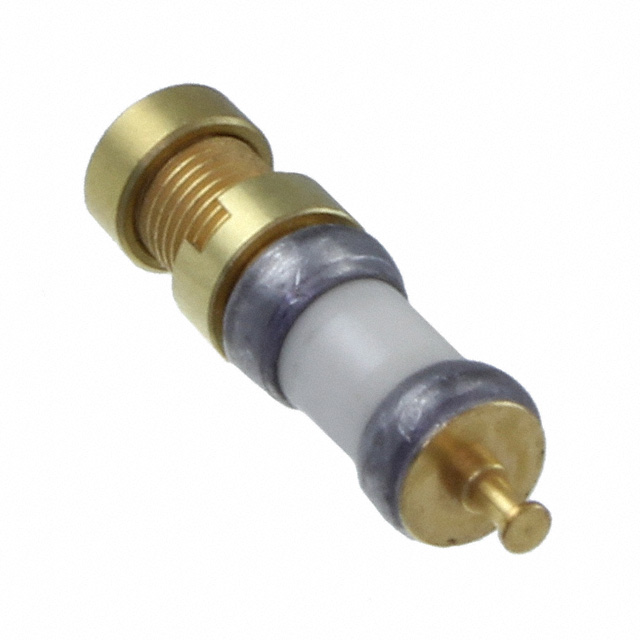

CAP TRIM 0.35-3.5PF 250V PNL MNT
5802
ActiveKnowles Syfer
CAP TRIM 0.35-3.5PF 250V PNL MNT
Description
General part information
5802
0.35 ~ 3.5pF Trimmer Capacitor 250 V Top Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 5802 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 3.5 pF |
| Capacitance Range (Min) | 0.35 pF |
| Dielectric Material | Air |
| Features | Sealed |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Q | 1000 |
| Size / Dimension Diameter | 0.16 in |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
