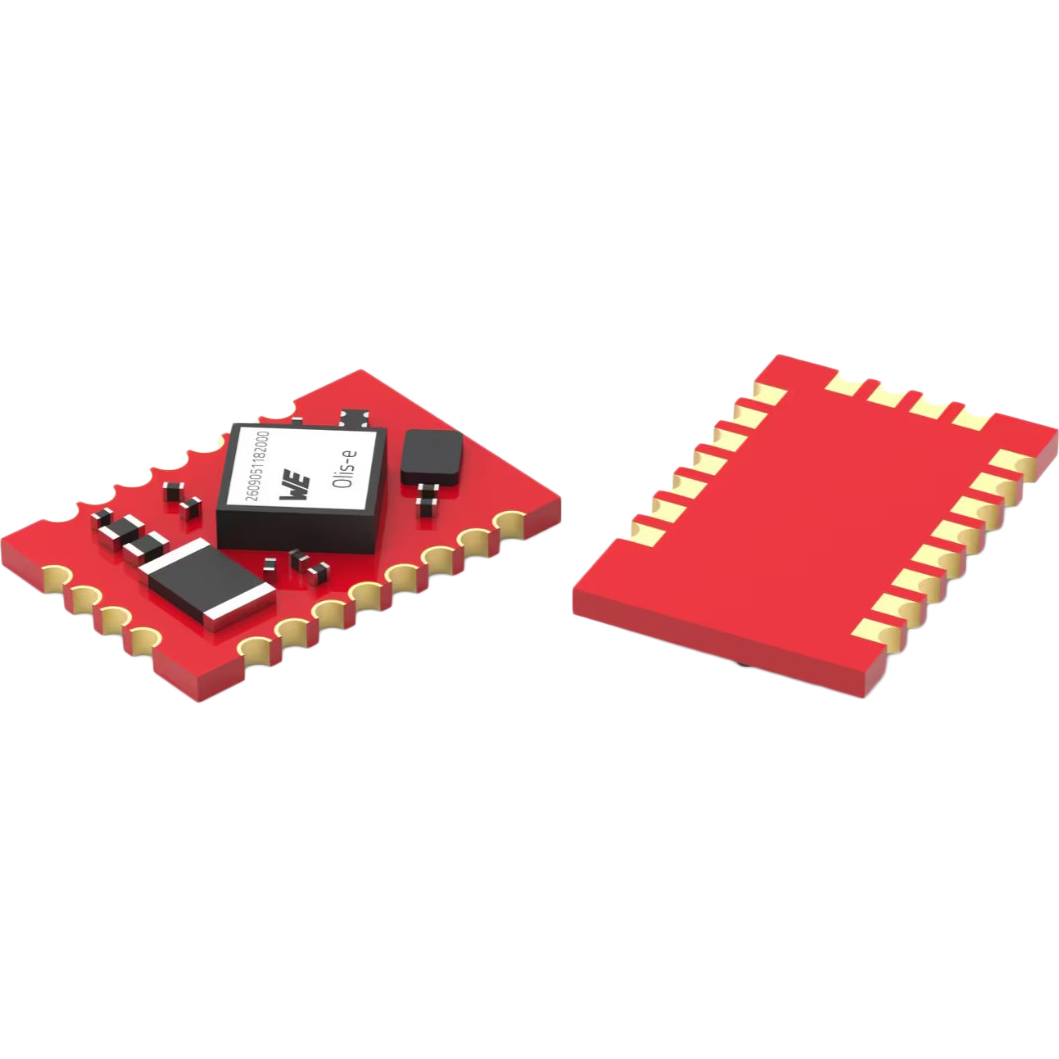

OLIS-E 868MHZ RF MODULE WITHOUT
2609051182000
ActiveWürth Elektronik
OLIS-E 868MHZ RF MODULE WITHOUT
Description
General part information
2609051182000
OLIS-E 868MHZ RF MODULE WITHOUT
Technical Specifications
Parameters and characteristics for this part
| Specification | 2609051182000 |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 8 mA |
| Current - Transmitting | 28 mA |
| Data Rate | 500 kbps |
| Frequency (Max) | 870 MHz |
| Frequency (Min) | 863 MHz |
| Memory Size (Flash) | 128 kB |
| Memory Size (SRAM) | 20 kB |
| Memory Type | RAM, Flash |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 19-SMD Module |
| Power - Output | 14 dBm |
| Protocol | 6LoWPAN, Zigbee®, Wireless M-Bus |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -117 dBm |
| Serial Interfaces | UART, I2C, SPI, I2S, GPIO |
| Utilized IC / Part | TI - CC1310 |
| Voltage - Supply (Maximum) | 3.8 V |
| Voltage - Supply (Minimum) | 2.2 V |
