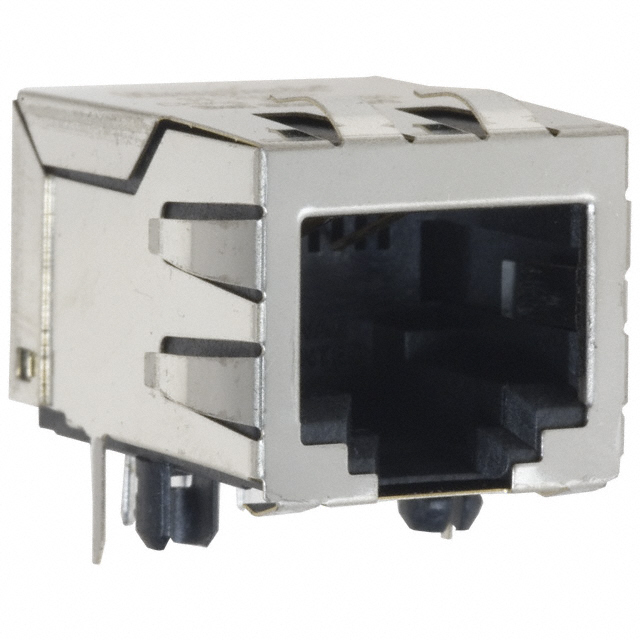

SI-20140
ActiveBel Fuse Inc.
CONN JACK 1PORT 10 BASE-T PCB
SI-20140
ActiveBel Fuse Inc.
CONN JACK 1PORT 10 BASE-T PCB
Description
General part information
SI-20140
1 Port RJ45Through Hole 10 Base-T, AutoMDIX
Technical Specifications
Parameters and characteristics for this part
| Specification | SI-20140 |
|---|---|
| Applications | AutoMDIX, 10 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Features | Board Lock |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 2 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down |
| Termination | Solder |
