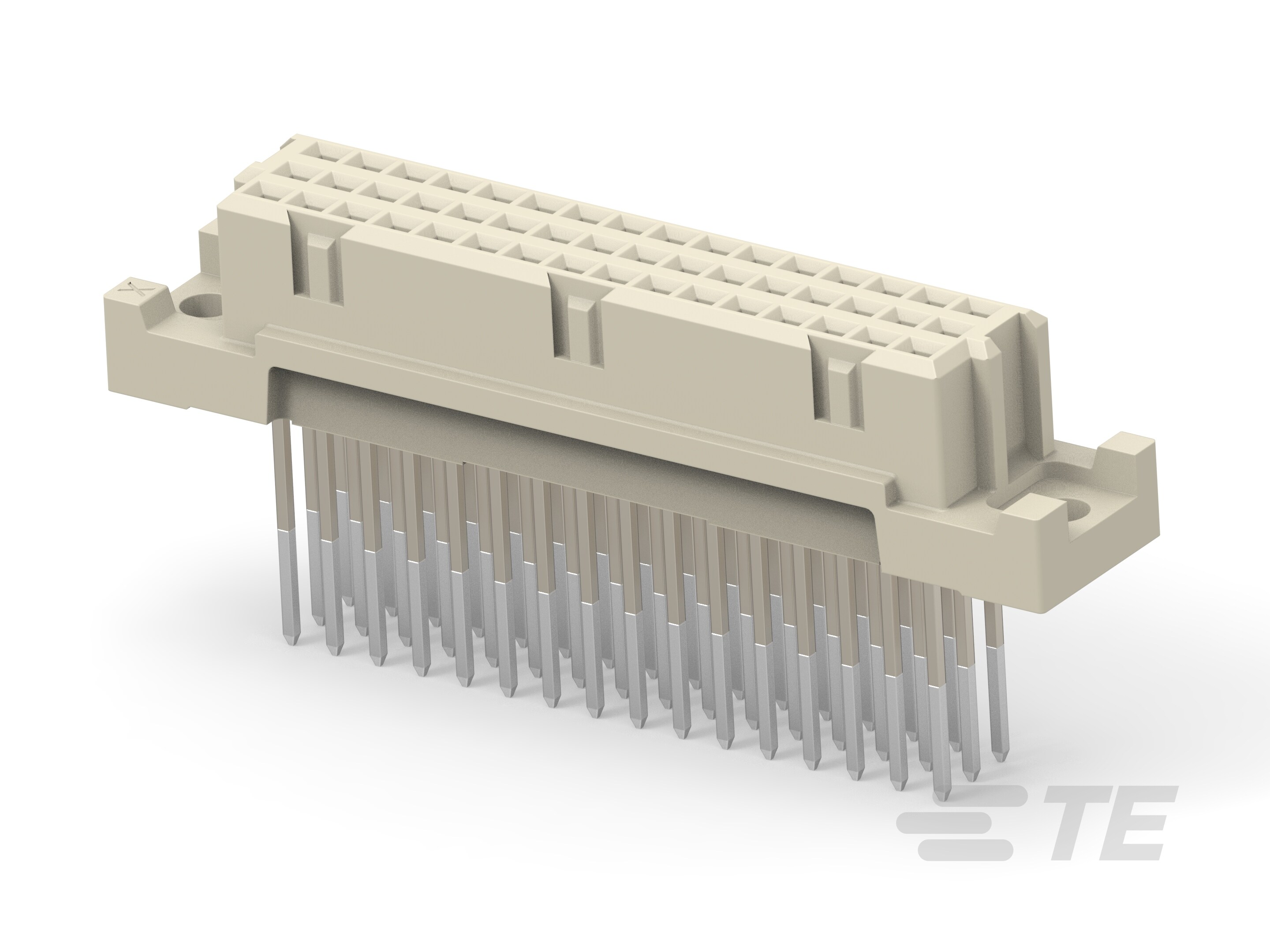

284172-E
ActiveTE Connectivity AMP Connectors
CONN DIN 41612 F 48 POS 2.54MM SOLDER ST THRU-HOLE
284172-E
ActiveTE Connectivity AMP Connectors
CONN DIN 41612 F 48 POS 2.54MM SOLDER ST THRU-HOLE
Description
General part information
284172-E
Receptacle, Board-to-Board, 48 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Vertical, 16 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 284172-E |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Level, Class | 2 |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch | 0.1 in |
| Style | C/2 (1/2 C) |
| Termination | Wire Wrap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
