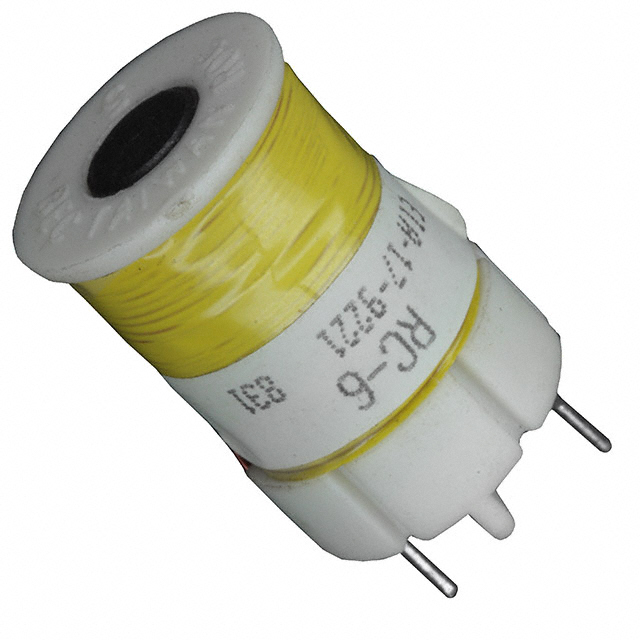

RC-6-B
ActiveTriad Magnetics
FIXED IND 560UH 800MA 600MOHM TH
RC-6-B
ActiveTriad Magnetics
FIXED IND 560UH 800MA 600MOHM TH
Description
General part information
RC-6-B
560 µH Unshielded Drum Core, Wirewound Inductor 800 mA 600mOhm Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | RC-6-B |
|---|---|
| Current Rating | 800 mA |
| DC Resistance (DCR) | 600 mOhm |
| Height - Seated (Max) | 0.93 in |
| Inductance | 560 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder, Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.6 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
