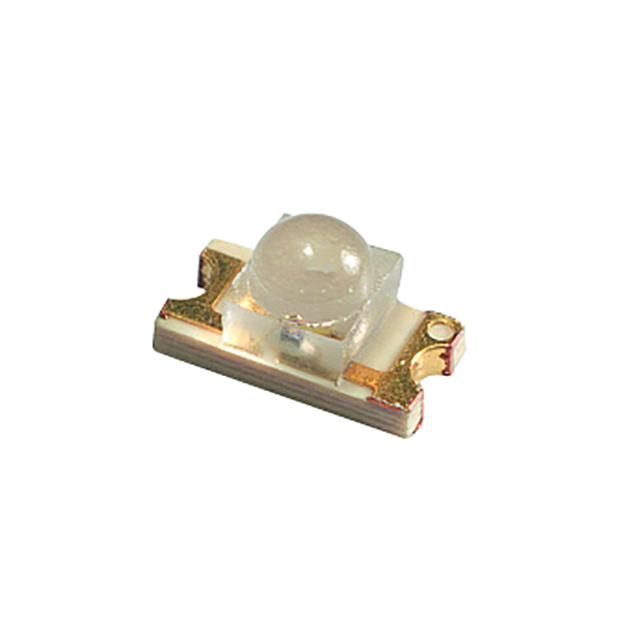

OIS-330 1300N-X-T
ActiveEPIGAP OSA Photonics
SWIR EMITTER 1300NM 1206 SMD DOM
OIS-330 1300N-X-T
ActiveEPIGAP OSA Photonics
SWIR EMITTER 1300NM 1206 SMD DOM
Description
General part information
OIS-330 1300N-X-T
Infrared (IR) Emitter 1300nm (1260nm ~ 1340nm) 1.05V 60mA 7.1mW/sr @ 60mA 40° 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | OIS-330 1300N-X-T |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | 1206 (3216 Metric) |
| Radiant Intensity (Ie) Min | 7.1 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.05 V |
| Wavelength | 1300 nm |
| Wavelength (Maximum) | 1340 nm |
| Wavelength (Minimum) | 1260 nm |
| Wavelength (Nominal) | 1300 nm |
