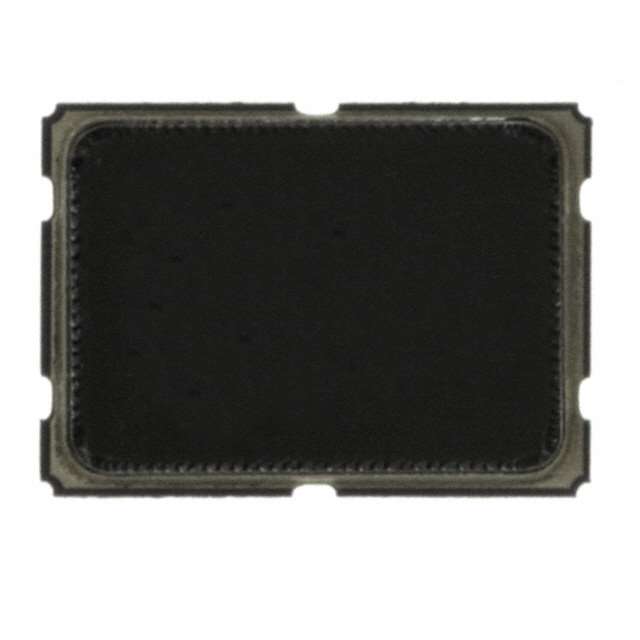

ECS-96SMF21A7.5
21.4 MHz Center 850 Ohms Monolithic Crystal Filter Surface Mount 2dB 7.5 kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-96SMF21A7.5 |
|---|---|
| Bandwidth | 7.5 kHz |
| Frequency - Center | 21.4 MHz |
| Height (Max) | 0.059 in |
| Impedance | 850 Ohms |
| Insertion Loss | 2 dB |
| Mounting Type | Surface Mount |
| Number of Poles | 2 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | No Lead, 6-SMD |
| Ripple (dB) | 1 dB |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
