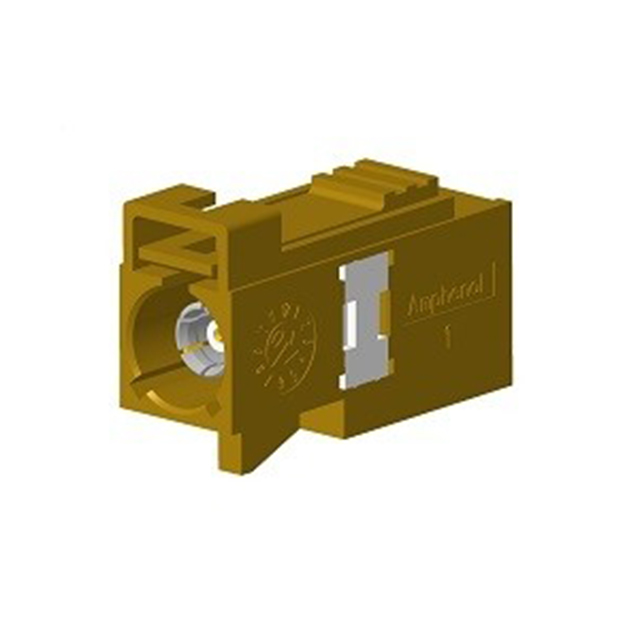

FA1-NKSJ-C01-6

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NKSJ-C01-6

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code K
Frequency - Max [Max]	4 GHz
Housing Color	Curry
Impedance	50 Ohms
Includes	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Insertion Loss	Features	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Material	Includes	Number of Ports	Body Material	Cable Group	Frequency - Max [Max]	Connector Style	Fastening Type	Contact Termination	Center Contact Plating	Body Finish	Connector Type	Dielectric Material	Shield Termination	Mounting Type	Housing Color
Amphenol RF FA1-NKSJ-C04-0	0.3 dB	Code K	-40 °C	115 °C	50 Ohms	Beryllium Copper	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	1	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	Fakra SMB	Latch Lock	Crimp	Gold	Nickel	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Crimp	Free Hanging (In-Line)	Curry
Amphenol RF FA1-NKSJ-C01-6	0.3 dB	Code K	-40 °C	115 °C	50 Ohms	Beryllium Copper	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	1	Brass	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	Fakra SMB	Latch Lock	Crimp	Gold	Nickel	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Crimp	Free Hanging (In-Line)	Curry
Amphenol RF FA1-NKSJ-C01-0	0.3 dB	Code K	-40 °C	115 °C	50 Ohms	Beryllium Copper	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	1	Brass	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	Fakra SMB	Latch Lock	Crimp	Gold	Nickel	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Crimp	Free Hanging (In-Line)	Curry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
