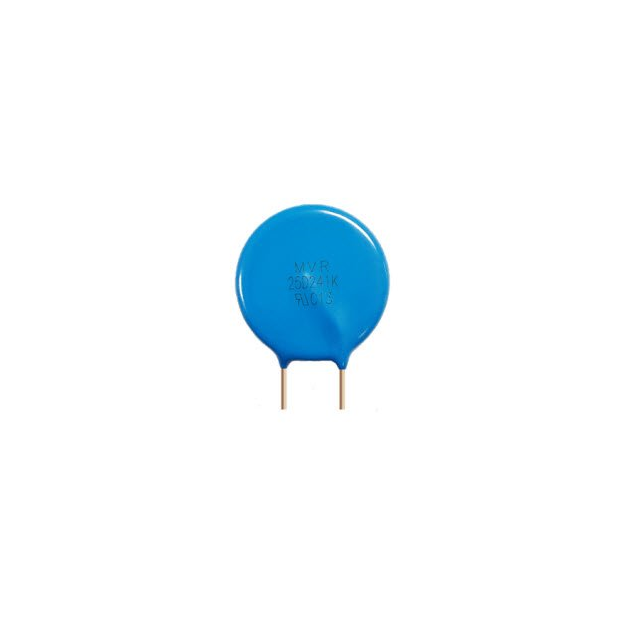

MVR20D182K

Active

Meritek

VARISTOR 1800V 6500A 20MM DISC T

Search across all available documentation for this part.

Active

Meritek

VARISTOR 1800V 6500A 20MM DISC T

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR 910V 10000A DISC 20MM H

Part	Varistor Voltage (Typ)	Mounting Type	Varistor Voltage (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Energy	Maximum AC Volts [Max]	Package / Case	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Maximum DC Volts [Max]	Current - Surge	Number of Circuits	Features
Meritek MVR20D911K-S	910 V	Through Hole	1.001 kV	-40 °C	105 ░C	510 J	550 V	Disc 20mm	819 V	440 pF	745 V	10 kA	1	High Surge
Meritek MVR20D270K	27 V	Through Hole	31 V	-40 °C	105 ░C	16 J	17 V	Disc 20mm		13000 pF	22 V	2 kA	1
Meritek MVR20D271K	270 V	Through Hole	297 V	-40 °C	105 ░C	127 J	175 V	Disc 20mm	243 V	1500 pF	225 V		1
Meritek MVR20D181K	180 V	Through Hole	198 V	-40 °C	105 ░C	85 J	115 V	Disc 20mm	162 V	2200 pF	150 V		1
Meritek MVR20D511K	510 V	Through Hole	561 V	-40 °C	105 ░C	220 J	320 V	Disc 20mm	459 V	780 pF	415 V		1
Meritek MVR20D330K	33 V	Through Hole		-40 °C	105 ░C	23 J	20 V	Disc 20mm	29.5 V	11500 pF	26 V	2 kA	1
Meritek MVR20D180K	18 V	Through Hole	21.6 V	-40 °C	105 ░C	11 J	11 V	Disc 20mm	15 V	28500 pF	14 V	2 kA	1
Meritek MVR20D182K	1.8 kV	Through Hole	1.98 kV	-40 °C	105 ░C	625 J	1.1 kV	Disc 20mm	1620 V	320 pF	1.465 kV		1
Meritek MVR20D681K	680 V	Through Hole	748 V	-40 °C	105 ░C	230 J	420 V	Disc 20mm	612 V	600 pF	560 V		1
Meritek MVR20D561K	560 V	Through Hole	616 V	-40 °C	105 ░C	220 J	350 V	Disc 20mm	504 V		460 V		1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.8 kV 6.5 kA Varistor 1 Circuit Through Hole Disc 20mm
