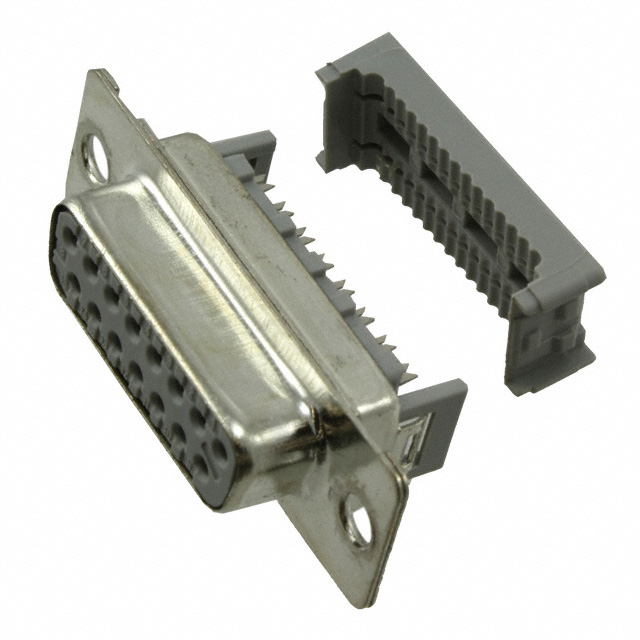

8315-6009

Active

3M (TC)

CONN D-SUB SKT 15 POS 1.38MM IDT RA PANEL MOUNT 15 TERMINAL 1 PORT BOX

Search across all available documentation for this part.

Active

3M (TC)

CONN D-SUB SKT 15 POS 1.38MM IDT RA PANEL MOUNT 15 TERMINAL 1 PORT BOX

Technical Specifications

Parameters and characteristics for this part

Specification	8315-6009

Color	Gray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
Features	Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable

Part	Features	Termination	Shell Size, Connector Layout	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Color	Number of Positions	Number of Rows	Contact Material	Flange Feature	Material Flammability Rating	Dielectric Material	Contact Type	Connector Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type
3M (TC) 8315-6003	Feed Through	IDC Ribbon Cable	2	105 ░C	-55 °C	0.76 Ám	30 Áin	Gold	Receptacle Female Sockets	Gray	15	2	Copper Alloy	Housing/Shell (4-40)	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Signal	D-Sub
3M (TC) 8315-6000	Feed Through	IDC Ribbon Cable	2	105 ░C	-55 °C	0.76 Ám	30 Áin	Gold	Receptacle Female Sockets	Gray	15	2	Copper Alloy	Housing/Shell (Unthreaded)	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Signal	D-Sub
3M (TC) 8315-1-3/8"X23"X6"										White									22.99 in	583.9 mm	1.38 "	35.1 mm	Carry Handle Strips
3M (TC) 8315-6009	Feed Through	IDC Ribbon Cable	2	105 ░C	-55 °C	0.76 Ám	30 Áin	Gold	Receptacle Female Sockets	Gray	15	2	Copper Alloy	Housing/Shell (Unthreaded)	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Signal	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
