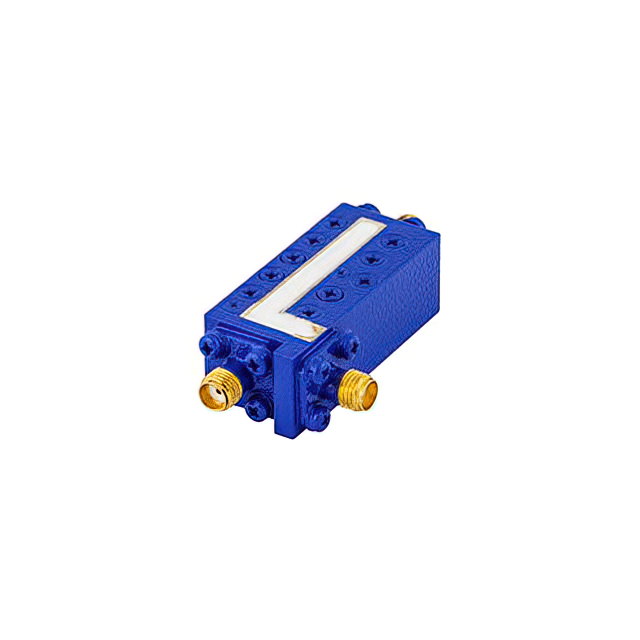

ZDSS-5G6G-S+
RF Diplexer 0Hz ~ 5GHz / 6GHz ~ 20GHz Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZDSS-5G6G-S+ |
|---|---|
| Frequency Bands (High) Maximum | 20 GHz |
| Frequency Bands (High) Minimum | 6 GHz |
| Frequency Bands (Low) Maximum | 5 GHz |
| Frequency Bands (Low) Minimum | 0 Hz |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Return Loss (High Band) | 8 dB |
| Return Loss (Low Band) | 10 dB |
| Type | Diplexer |
