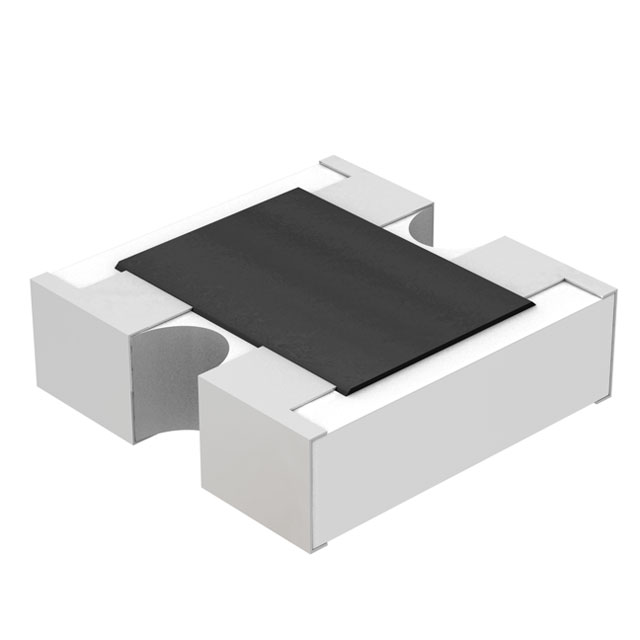

MNR12E0ABJ750
UnknownRohm Semiconductor
RES ARRAY 2 RES 75 OHM 0606
MNR12E0ABJ750
UnknownRohm Semiconductor
RES ARRAY 2 RES 75 OHM 0606
Description
General part information
MNR12E0ABJ750
75 Ohm ±5% 62.5mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0606, Convex
Technical Specifications
Parameters and characteristics for this part
| Specification | MNR12E0ABJ750 |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.024 in |
| Mounting Type | Surface Mount |
| Number of Pins | 4 |
| Number of Resistors | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0606, Convex |
| Power Per Element | 62.5 mW |
| Resistance | 75 Ohm |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
