NSYTRP24D
ActiveSCHNEIDER ELECTRIC
PUSH-IN TERMINAL 2LEVEL 4PTS 2,5
NSYTRP24D
ActiveSCHNEIDER ELECTRIC
PUSH-IN TERMINAL 2LEVEL 4PTS 2,5
Description
General part information
NSYTRP24D

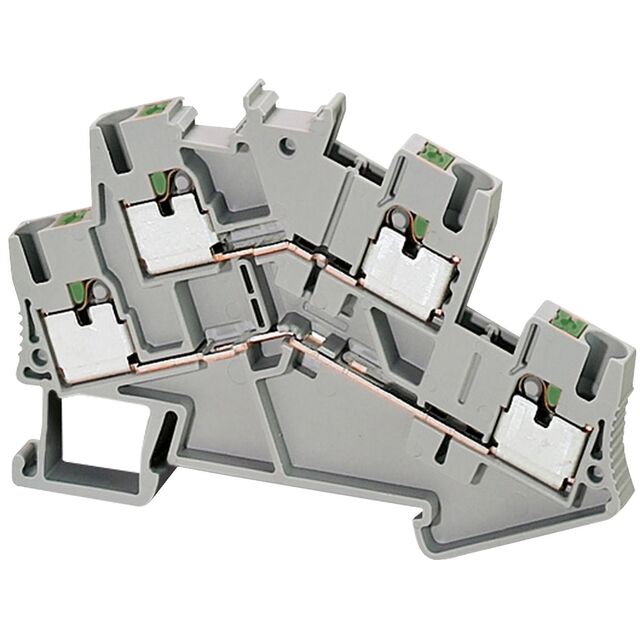

Terminal Block Connector 4 Position Feed Through Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTRP24D |
|---|---|
| Color | Gray |
| Current - IEC | 22 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
