Description
General part information
9-638677-1

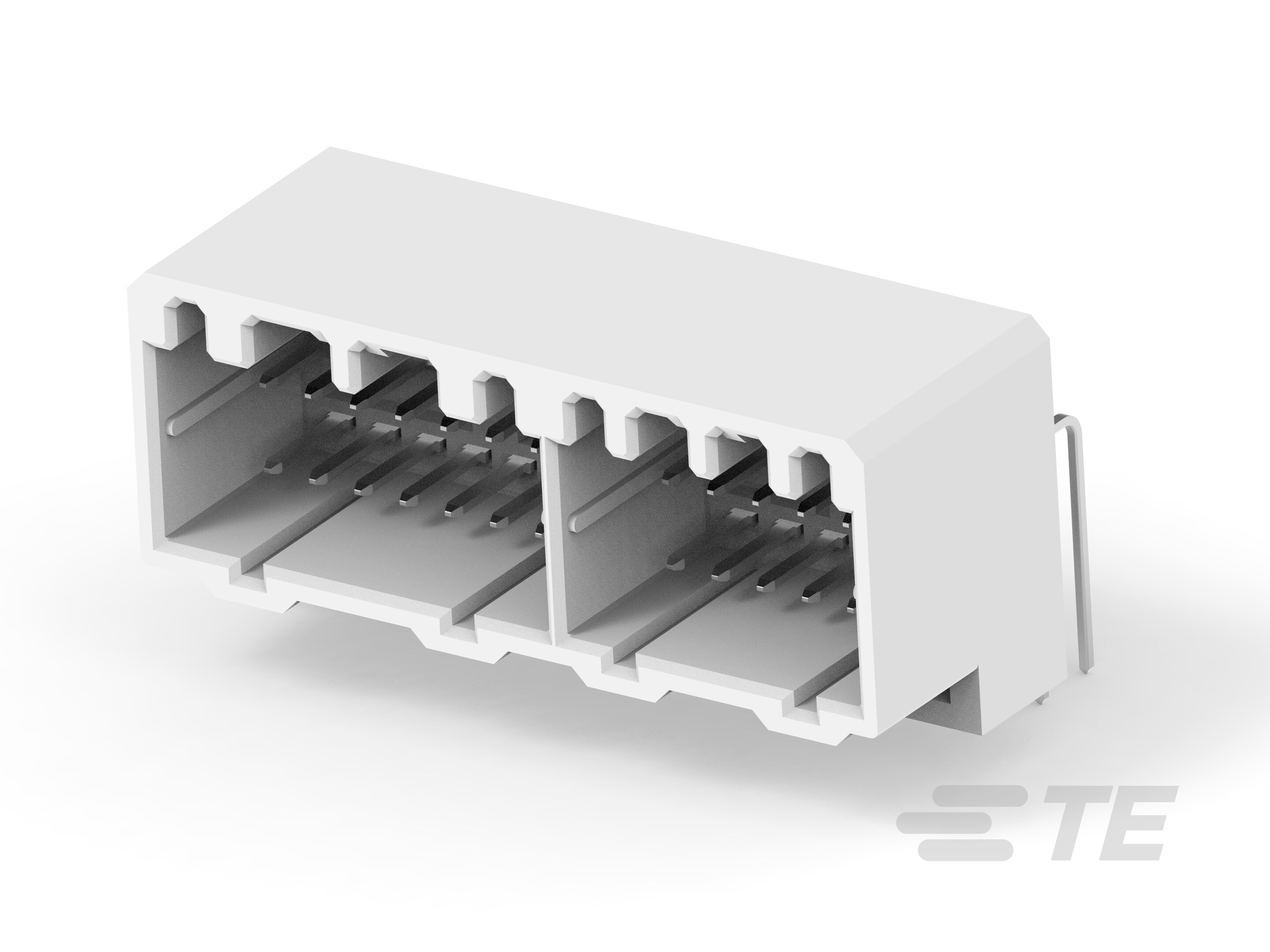

Right Angle, Wire-to-Board, 28 Position, 2 Rows, 3mm [.118in] Centerline, Tin (Sn), Printed Circuit Board, Natural, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-638677-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.28 in |
| Contact Length - Post | 0.134 in |
| Contact Material | Brass |
| Contact Shape | Square, Rectangular |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Features | Mounting Flange |
| Insulation Color | Natural |
| Insulation Height | 0.862 in |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.118 in |
| Row Spacing - Mating | 0.205 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
