PE9918
ActivePasternack

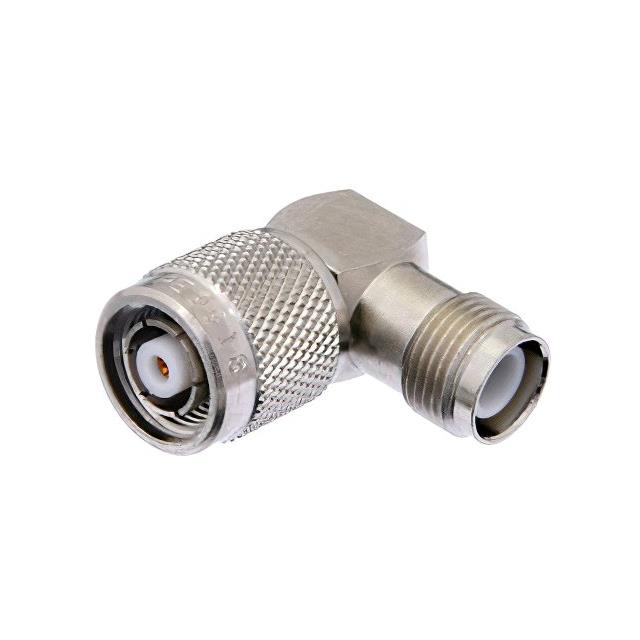

COAX ADAPT RP-TNC TO RP-TNC
PE9918
ActivePasternack
COAX ADAPT RP-TNC TO RP-TNC
Description
General part information
PE9918
Adapter Coaxial Connector RP-TNC Jack, Male Pin To RP-TNC Plug, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9918 |
|---|---|
| Adapter Series | RP-TNC to RP-TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | RP-TNC Jack, Male Pin |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | RP-TNC Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Right Angle |
