Description
General part information
CVC Series

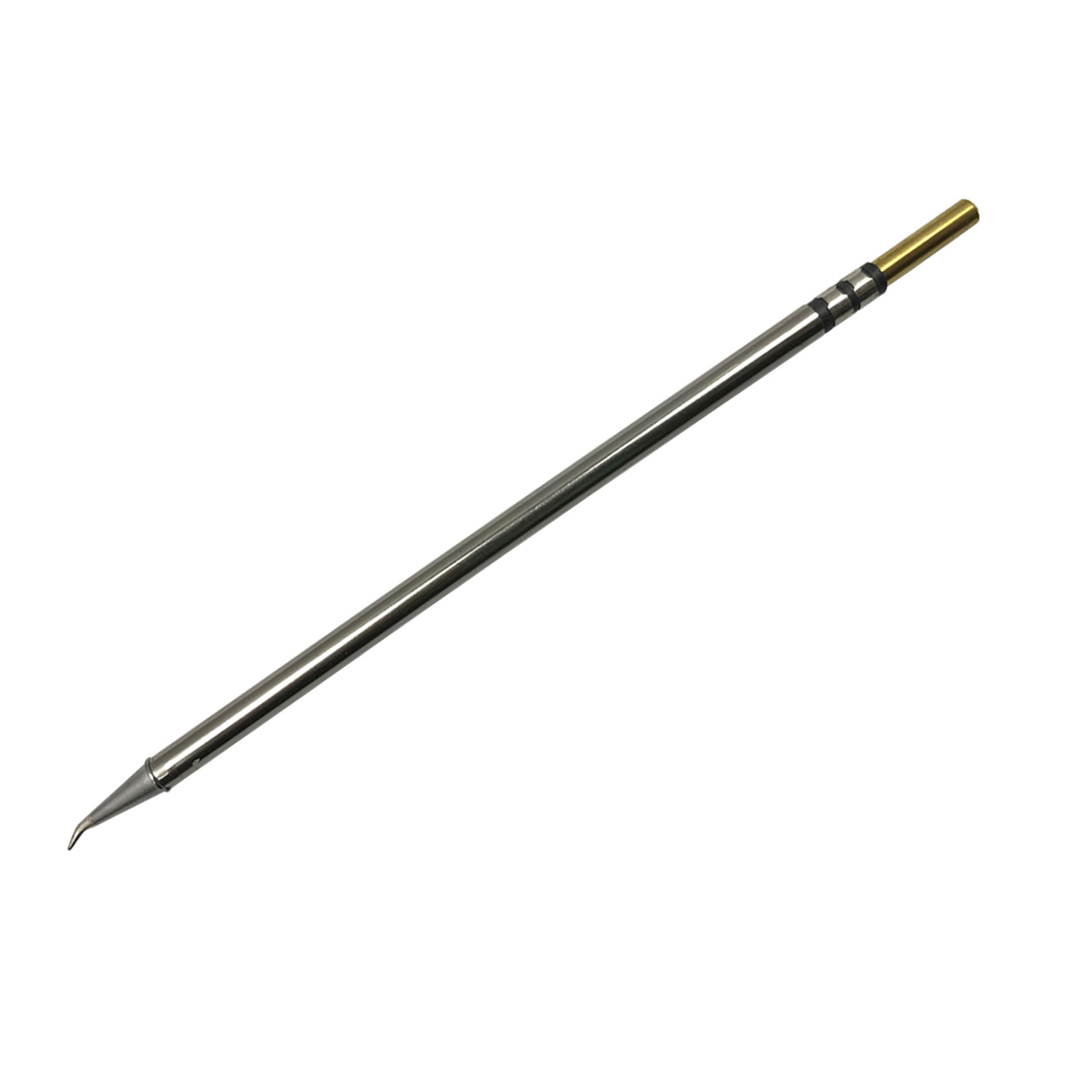

The CVC-7CN0005R from Metcal is a CVC series Connection Validation™ cartridge. This cartridge is used with CV-5200 soldering systems. CVC series provides a wide range of options for through-hole and SMD rework.
Technical Specifications
Parameters and characteristics for this part
| Specification | CVC-7CN0005R |
|---|---|
| Diameter | 0.02 in |
| For Use With/Related Products | MX-5200, CV-H1-AV, MX-RM6E, MX-H7-SF, HMX-500, CV-H7-AV, CV-500, CV-5200, MX-H1-AV, MX-5000, MX-RM3E |
| Length | 0.57 in |
| Temperature Range (Single) | 775 °F |
| Tip Angle | 30 ° |
| Tip Shape | Bent, Conical |
| Tip Type | Soldering |
