LCCA30575-FT2
ActivePasternack
N FBH TO BNC F USING LC085TB, 2
LCCA30575-FT2
ActivePasternack
N FBH TO BNC F USING LC085TB, 2
Description
General part information
LCCA30575-FT2

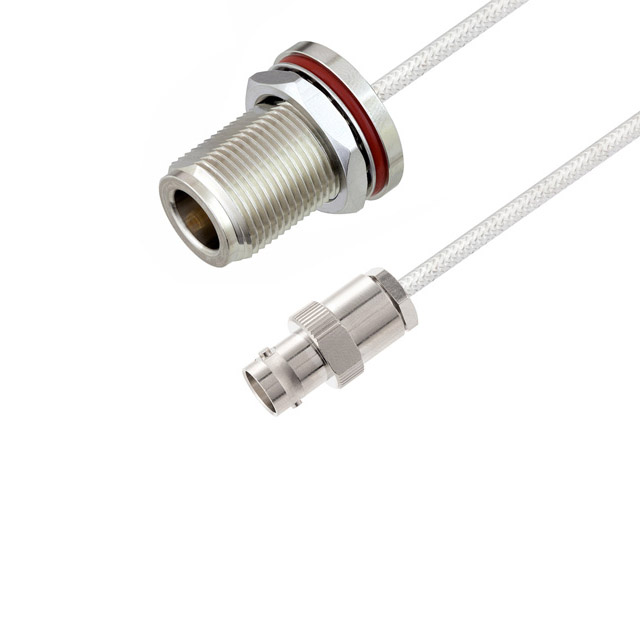

Cable Assembly Coaxial BNC to N-Type LC085TB 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30575-FT2 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type, BNC |
