W1S12B-40ML5

Active

Rosenberger

CONN PCB PLUG QUAD STR SMD

Search across all available documentation for this part.

Active

Rosenberger

CONN PCB PLUG QUAD STR SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W1S12B-40ML5	W1S12B-40 Series

Body Finish	Gold	Gold
Body Material	Nickel, Iron, Cobalt	Nickel, Iron, Cobalt
Center Contact Material	Cobalt, Iron, Nickel	Cobalt, Iron, Nickel, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	WSMP	WSMP
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Fastening Type	Snap-On	Snap-On
Features	Full Detent	Full Detent, Smooth Bore
Frequency - Max [Max]	100 GHz	100 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	-	500
Mounting Type	Surface Mount	Surface Mount
Number of Ports	4	4
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder

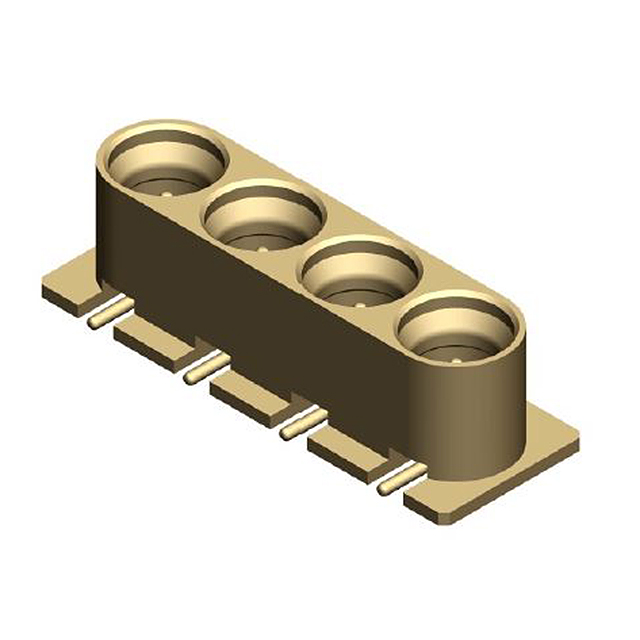

CONN PCB PLUG QUAD STR SMD

Part	Shield Termination	Housing Color	Center Contact Plating	Features	Connector Type	Mounting Type	Contact Termination	Fastening Type	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Connector Style	Body Material	Body Finish	Impedance	Number of Ports	Mating Cycles
Rosenberger W1S12B-40ML5	Solder	Gold	Gold	Full Detent	Male Pin, Plug	Surface Mount	Solder	Snap-On	100 GHz	165 °C	-55 °C	Cobalt, Iron, Nickel	WSMP	Cobalt, Iron, Nickel	Gold	50 Ohms	4
Rosenberger W1S12B-40MZ9	Solder	Gold	Gold	Smooth Bore	Male Pin, Plug	Surface Mount	Solder	Snap-On	100 GHz	165 °C	-55 °C	Beryllium Copper	WSMP	Cobalt, Iron, Nickel	Gold	50 Ohms	4	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WSMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
