Description
General part information

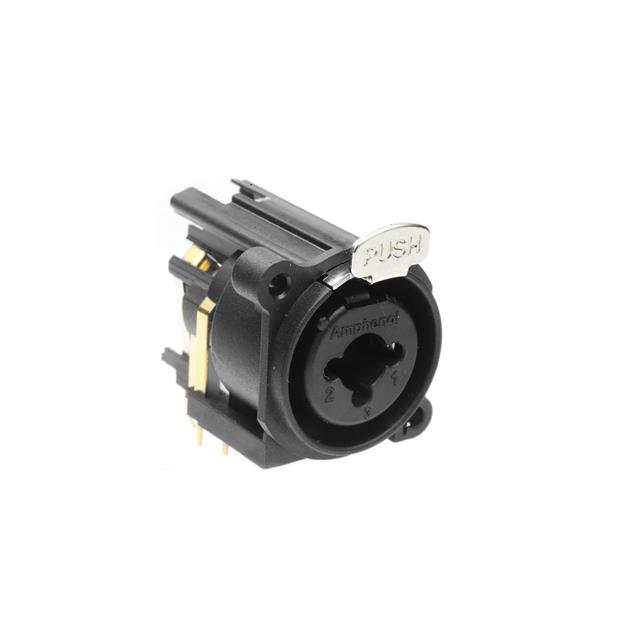

ACJC10AV2BULK
6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Kinked Pin, Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | ACJC10AV2BULK |
|---|---|
| Body Color | Black |
| Connector Type | Dual, Phone Jack |
| Contact Material | Bronze, Brass |
| Contact Material - Plating | Gold, Silver |
| Current Rating | 7.5 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Nylon 6/6, Glass Filled, PA66, Polyamide |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch Count | 3 count |
| Mounting Type | Panel Mount, Through Hole |
| Number of Conductors | 3 Conductors |
| Number of Contacts | 11 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Hole Size | 0.937 in |
| Shielding | Unshielded |
| Signal Lines | 3 Conductor, TRS, Stereo |
| Termination | Kinked Pin, Solder |
