BAC541
ActivePasternack
RP TNC PLUG RG174RG188RG316
BAC541
ActivePasternack
RP TNC PLUG RG174RG188RG316
Description
General part information
BAC541

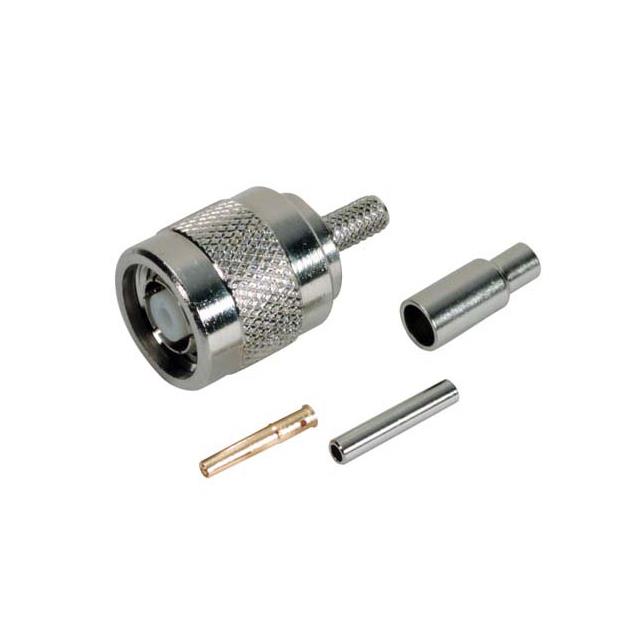

RP-TNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC541 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-TNC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
