HG72714P-090
ActivePasternack
ANTPNL 700-2700MHZ 14DBI 90?
HG72714P-090
ActivePasternack
ANTPNL 700-2700MHZ 14DBI 90?
Description
General part information
HG72714P-090

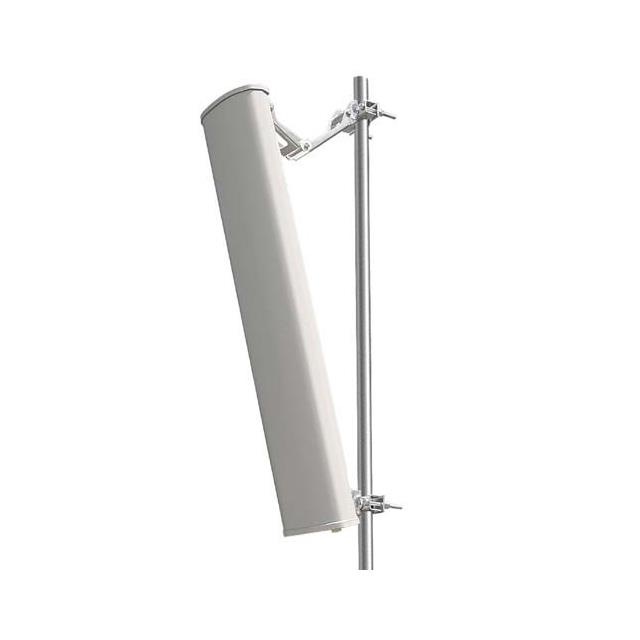

829MHz, 2.205GHz 802.11b/g, Wi-Fi Sector RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz 13dBi, 14dBi N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG72714P-090 |
|---|---|
| Antenna Type | Sector |
| Applications | Wi-Fi, 802.11b/g |
| Frequency (Band) | 2.205 GHz |
| Frequency (Center) | 829 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 13 dBi, 14 dBi |
| Height (Max) | 61.693 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max | 200 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.6, 1.7 |
| VSWR Maximum | 1.7 |
| VSWR Minimum | 1.6 |
