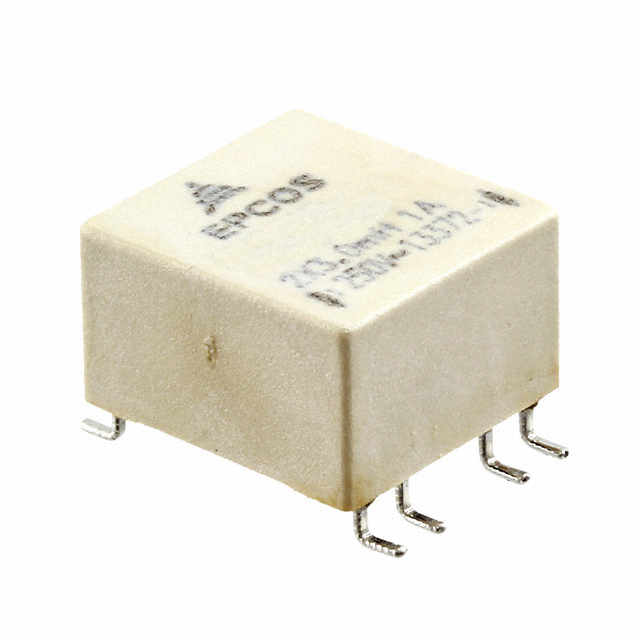

B82720S2102N040
ActiveEPCOS - TDK Electronics
CMC 3MH 1A 2LN SMD
B82720S2102N040
ActiveEPCOS - TDK Electronics
CMC 3MH 1A 2LN SMD
Description
General part information
B82720S2102N040
3 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 1A DCR 220mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82720S2102N040 |
|---|---|
| Current Rating (Max) | 1 A |
| DC Resistance (DCR) (Max) | 220 mOhm |
| DC Resistance (DCR) (Typ) | 220 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.421 in |
| Inductance | 3 mH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8 Gull Wing, Horizontal |
| Size / Dimension Length | 0.571 in |
| Size / Dimension Width | 0.524 in |
| Voltage Rating - AC | 250 V |
