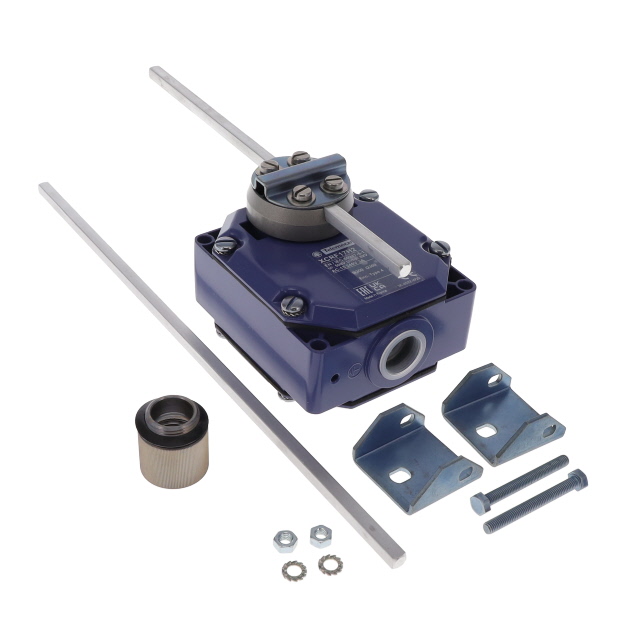

XCRF17H2
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ROD LEVER, DPST-NO, DPST-NC, 3 A, 240 V, 0.6 N-M, OSISENSE XC SERIES
XCRF17H2
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ROD LEVER, DPST-NO, DPST-NC, 3 A, 240 V, 0.6 N-M, OSISENSE XC SERIES
Description
General part information
XCRF17H2
Switch 4PST-2NO/2NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCRF17H2 |
|---|---|
| Actuator Type | Adjustable Rod, Side Rotary |
| Circuit | 4PST-2NO/2NC |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
