31672793
ActiveSAB North America
H/U STRND 2/0AWG GRN/YLW QTY1=1'
31672793
ActiveSAB North America
H/U STRND 2/0AWG GRN/YLW QTY1=1'
Description
General part information
31672793

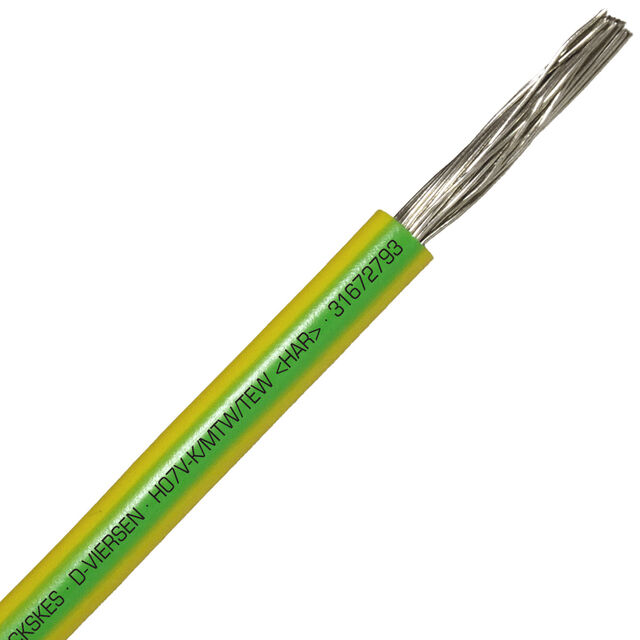

2/0 AWG Hook-Up Wire 543/26 Green, Yellow 600V Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 31672793 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 543 |
| Conductor Strand Gauge | 26 AWG |
| Jacket (Insulation) Diameter | 0.638 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Yellow, Green |
| Length | Enter Number of Feet in Order Quantity |
| Operating Temperature | 105 °C |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | 10519, UL, Style, 1015 |
| Voltage | 600 V |
| Wire Gauge | 2/0 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
